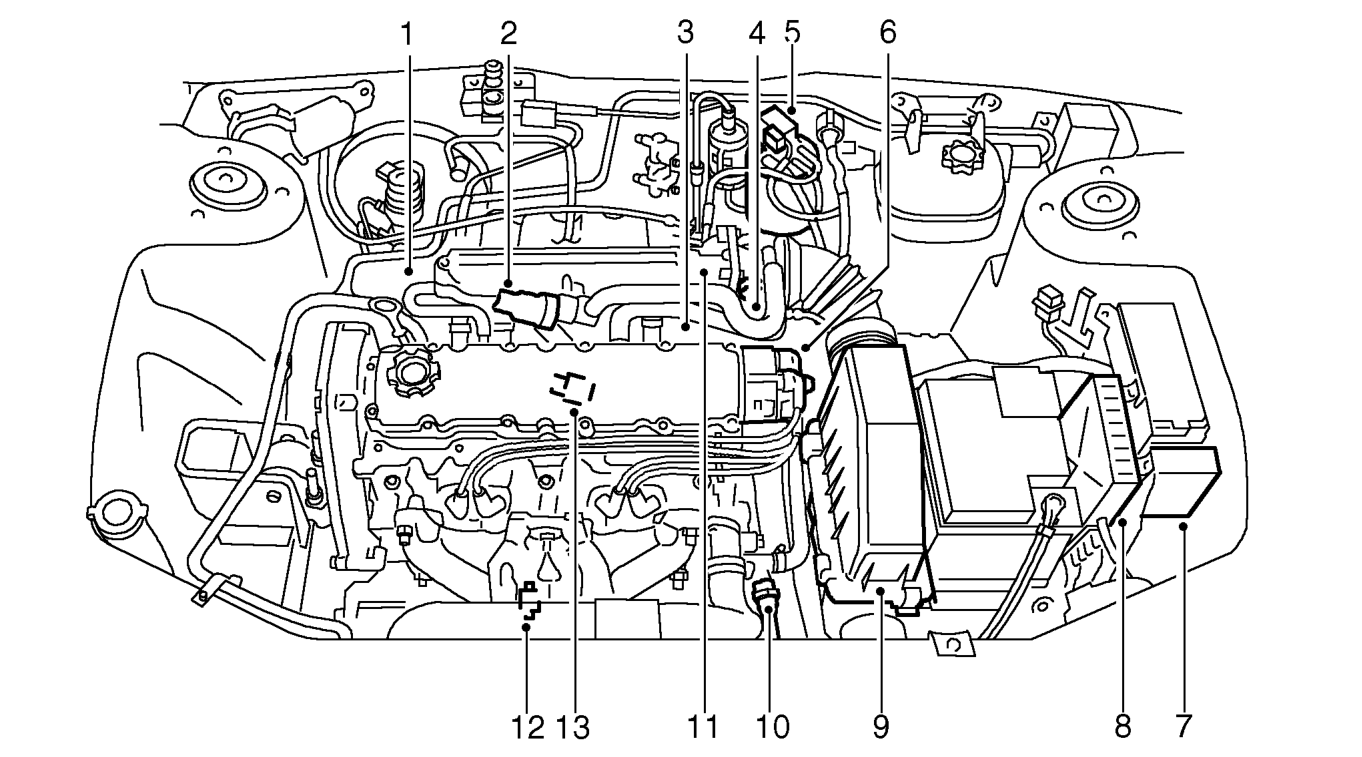

ENGINE COMPARTMENT COMPONENT LOCATIONS - ’K8’

1. Fuel pressure regulator
2. Idle air control valve
3. Intake air temperature sensor
4. Throttle position sensor
5. EVAP canister and purge valve
6. Distributor
7. Relay module
8. Engine control module (ECM)
9. Air cleaner
10. Engine coolant temperature sensor
11. Crankshaft position sensor
12. Oxygen sensor
13. Ignition coil
