Engine management system - MEMS (Fuel system): Description and operation

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Description and operation › Fuel system
Engine management system - MEMSFuel system

FUEL SYSTEM

Engine Control Module (ECM)

’K8’ and ’K16’ models

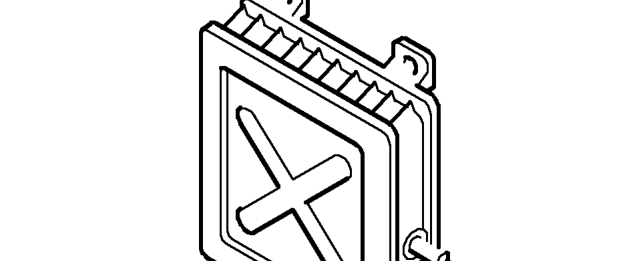

Engine control module (ecm) – ’K8’ and ’K16’ models
INPUTS
* Oil temperature sensor Crankshaft position sensor * Camshaft position sensor Manifold absolute pressure sensor Engine coolant temperature sensor Intake air temperature sensor Heated oxygen sensor Throttle position sensor Diagnostic input Battery supply Starter signal Earth supply Anti-theft control unit
ECM

* ’K16 with VVC’ models

The Modular Engine Management System (MEMS) is controlled by an ECM mounted in the engine compartment. The ECM is an adaptive unit which over a period of time learns the load and wear characteristics of the engine it controls. The ECM remembers and updates two main engine requirements when the engine is running at normal operating temperature:

  1. The position of the idle air control (IAC) valve required to achieve a specified idle speed. This is then used as a reference for IAC valve movement to achieve idle speed under all load conditions.
  2. The fuelling change or offset required to achieve a set oxygen sensor voltage. This allows the system to provide the correct fuelling without having to apply excessive adjustments to the fuelling which can adversely affect the emissions and driveability.

NOTE: After fitting a different ECM, TestBook will be required to reprogramme the ECM with the code from the anti-theft control unit and to perform a full engine tune procedure.

The ECM inputs and outputs are shown in the following table:

OUTPUTS
* VVC solenoids Purge valve Ignition coil Injectors Idle air control valve Fuel pump relay Diagnostic connector Heated oxygen sensor relay Main relay Cooling fans Air conditioning
