Passenger airbag

PASSENGER AIRBAG

Service repair no - 76.73.69

CAUTION:

• Replace the airbag every 10 years. • Do not install used SRS parts from another car. When repairing an SRS system, always use genuine new Rover parts. • Carefully inspect the airbag assembly before installing it. Do not install an airbag assembly that shows signs of being dropped or improperly handled, such as dents, cracks, or deformation. • Do not try to disassemble, or tamper with the airbag assembly. • Special bolts are necessary for installing the airbag assembly. Do not use other bolts.

Remove

1. Remove key from starter switch and wait 10 minutes to allow SRS back-up power circuit to discharge before commencing work.
2. Disconnect both battery leads, earth lead first.

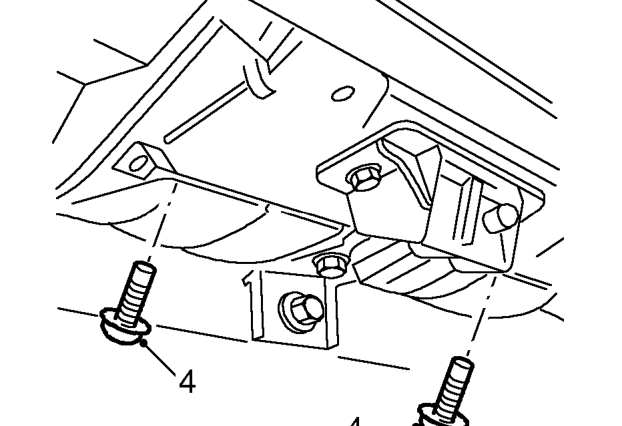

3. Remove glove box. See BODY, Interior trim components.

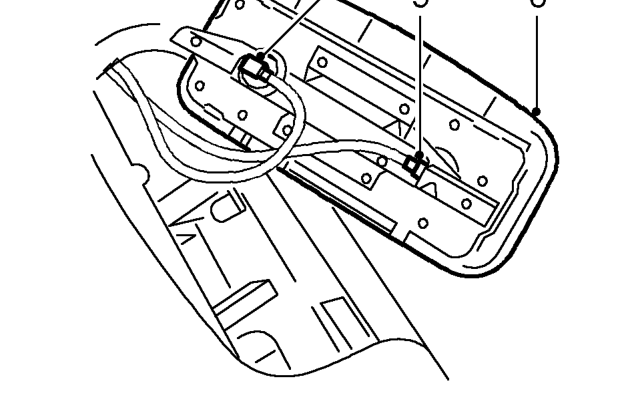

4. Remove 2 Torx screws securing airbag to support panel.

5. Release airbag from fascia and disconnect 2 harness multiplugs.

CAUTION: Do not allow the airbag module to hang by the airbag harness.

6. Remove airbag.

CAUTION: Store the airbag module in accordance with the storage procedures outlined in the precautions part of this section.

NOTE: If airbag is to be replaced, bar code of new airbag must be recorded.

Refit

1. Position airbag to fascia and connect harness multiplugs.
2. Fit airbag to fascia.
3. Fit Torx screws securing airbag to fascia and tighten to 9 Nm.
4. Fit glovebox. See BODY, Interior trim components.
5. Connect battery leads, earth lead last.
6. Carry out systems check by turning the ignition on and checking that the SRS warning light illuminates then extinguishes after 3 seconds.
