Passenger airbag harness

PASSENGER AIRBAG HARNESS

Service repair no - 76.73.67

Remove

CAUTION:

• Do not install used SRS parts from another car. When repairing an SRS, use only genuine new Rover parts.
• Never attempt to modify, splice, or repair SRS wiring.

NOTE: SRS wiring can be identified by its yellow or black with yellow stripe outer protective covering.

1. Remove key from starter switch and wait 10 minutes for SRS back-up power circuit to discharge before commencing work.
2. Disconnect both battery leads, earth lead first.
3. Remove passenger airbag. See this section.
4. Remove front console. See BODY, Interior trim components.

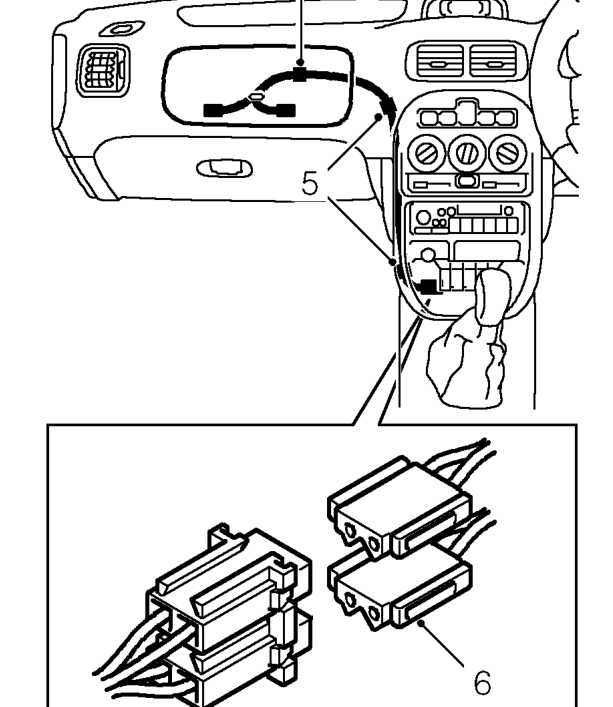

5. Release 3 clips securing passenger airbag harness to fascia.
6. Disconnect 2 harness multiplugs.
7. Remove passenger airbag harness.

Refit

1. Position airbag harness to fascia and secure with clips.

CAUTION: Always ensure the SRS harness is routed correctly. Avoid trapping or pinching the SRS harness. Look out for possible points of chafing.

2. Connect harness multiplugs.

CAUTION: Ensure all SRS connectors are mated correctly and securely fastened. Do not leave the connectors hanging loose.

3. Fit front console. See BODY, Interior trim components.
4. Fit passenger airbag. See this section.
5. Connect both battery leads, earth lead last.
6. Carry out system check by turning the ignition on and checking that the SRS warning light illuminates then extinguishes after 3 seconds.
