Airbag harness (page 4 of 4)

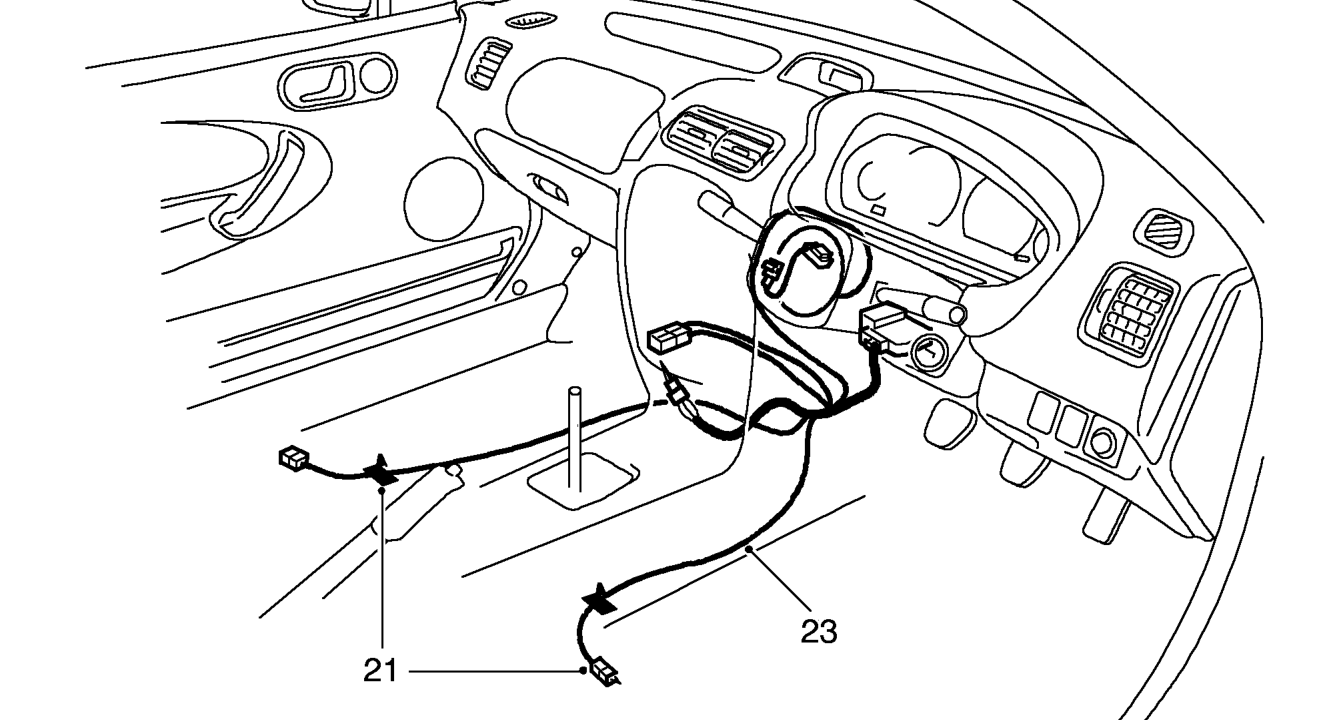

21. Release clips securing pre-tensioner harnesses to body.
22. Withdraw pre-tensioner harnesses towards fascia.
23. Remove airbag harness.

Refit

1. Position airbag harness in vehicle.

CAUTION: Always ensure SRS harness is routed correctly. Avoid trapping or pinching the SRS harness. Look out for possible points of chafing.

2. Route pre-tensioner harnesses under floor carpets towards front seats.
3. Secure pre-tensioner harnesses to body with clips.
4. Reposition floor carpets.
5. Fit seals to front door apertures.
6. Fit front seats. See BODY, Seats and seat belts.
7. Connect multiplug to SRS control unit.

CAUTION: Ensure all SRS harness connectors are mated correctly and securely fastened. Do not leave the connectors hanging loose.

8. Fit bolt securing earth lead to body and tighten to 9 Nm.
9. Fit cover to control unit and secure with scrivets.
10. Connect yellow main harness to SRS harness multiplug.
11. Route drivers airbag harness towards steering column and secure to fascia with clips.
12. Fit front console. See BODY, Interior trim components.
13. Connect SRS harness to rotary coupler.
14. Fit nacelle to steering column and secure with screws.
15. Fit steering wheel to column and tighten new nut to 50
16. Connect horn multiplug to rotary coupler.
17. Fit drivers airbag. See this section.
18. Fit passenger airbag harness. See this section.
19. Connect battery leads, earth lead last.
20. Carry out system check by turning the ignition on and checking that the SRS warning light illuminates then extinguishes after 3 seconds.
