Restraint systemsAirbag harness · page 2 of 4
Diagram

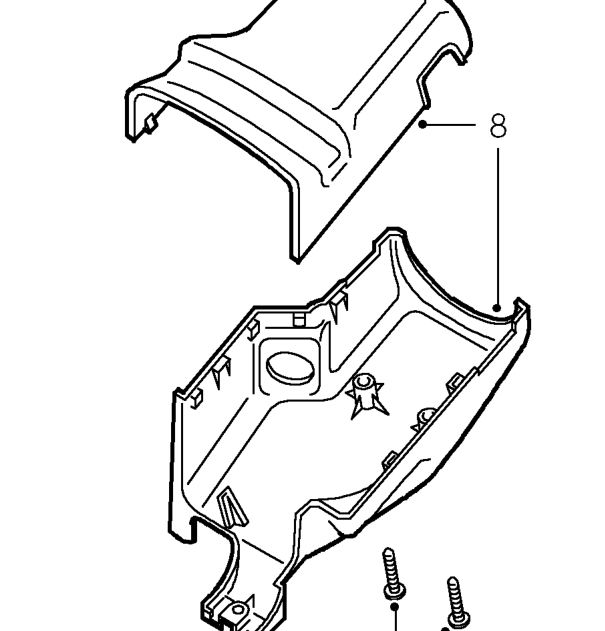

  1. Remove 3 screws securing nacelle to steering column.
  2. Remove nacelle.
Remove nacelle.

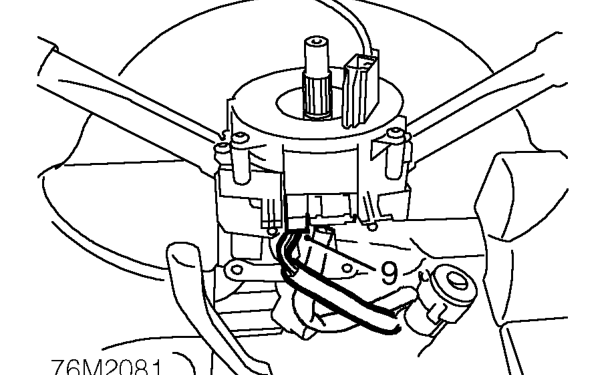

  1. Disconnect airbag harness multiplug from rotary coupler.
  2. Remove front console. See BODY, Interior trim components.
Remove front console. See BODY, Interior trim components.

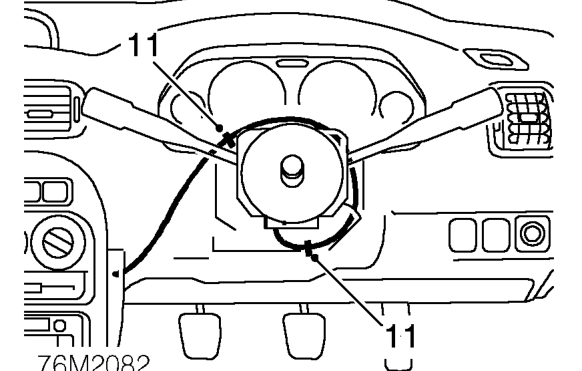

  1. Release 2 clips securing drivers airbag harness to fascia.
  2. Release drivers airbag harness from fascia.
Release drivers airbag harness from fascia.

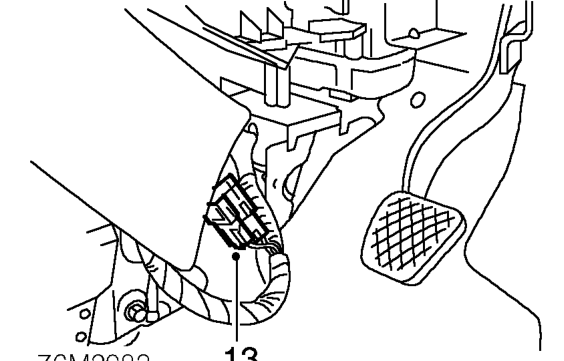

  1. Disconnect yellow main harness to SRS harness multiplug.
