FRONT SEAT BELT AND PRE-TENSIONER - 3 DOOR

Service repair no - 76.73.13

CAUTION: See safety precautions in SRS section before starting work.

Remove

  1. Disconnect battery earth lead.
  2. Remove rear quarter lower trim casing. See BODY, Interior trim components.

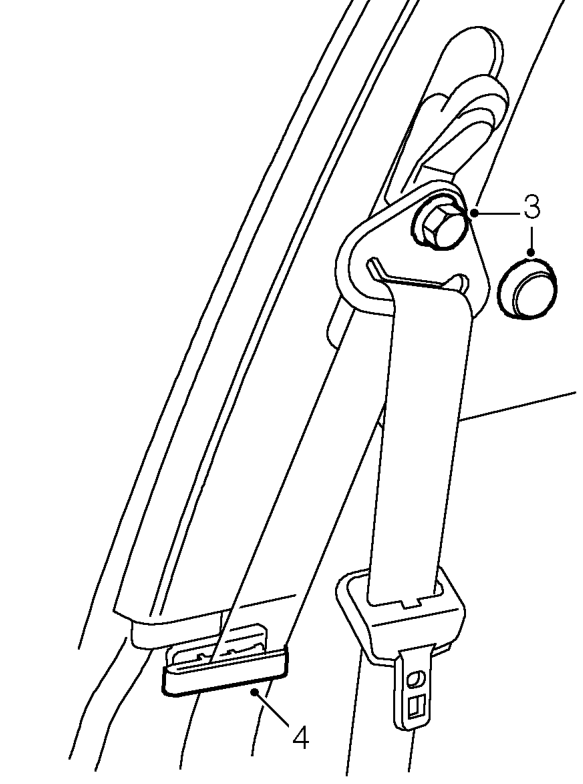

Front seat belt and pre-tensioner - 3 door – Remove rear quarter lower trim casing. See BODY, Interior trim components.
  1. Remove seat belt upper bolt cover and remove bolt.
  2. Release seat belt guide from ’B’ post.

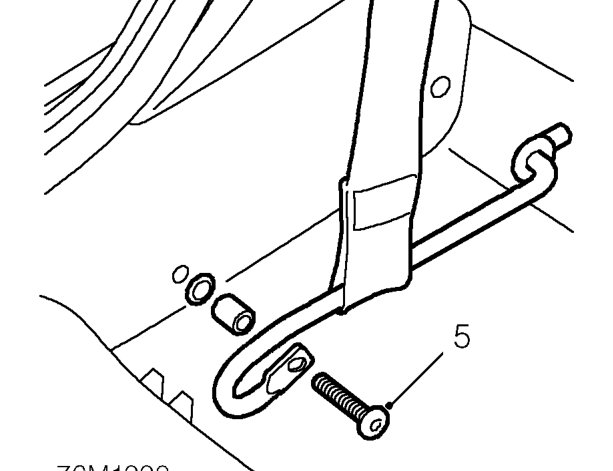

Front seat belt and pre-tensioner - 3 door – Release seat belt guide from ’B’ post.
  1. Remove Torx bolt securing lower seat belt guide.
  2. Remove belt from guide.

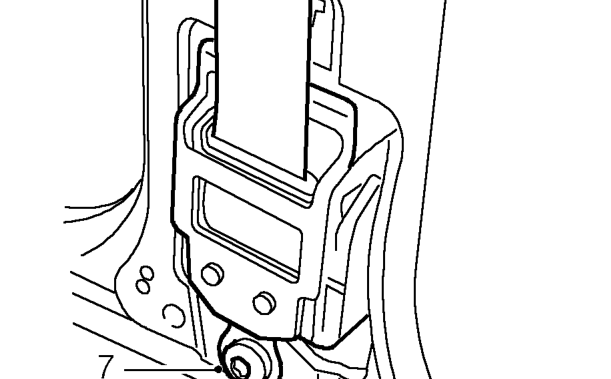

Front seat belt and pre-tensioner - 3 door – Remove belt from guide.
  1. Remove bolt securing seat belt reel to ’B’ post and remove reel.
  2. Remove front seat. See BODY, Seats and seat belts.
