Restraint systemsSeat belt pre-tensioner

SEAT BELT PRE-TENSIONER

Service repair no - 76.73.75

Remove

CAUTION: See safety precautions in SRS section before starting work.

  1. Disconnect battery earth lead.
  2. Remove front seat. See BODY, Seats and seat belts.

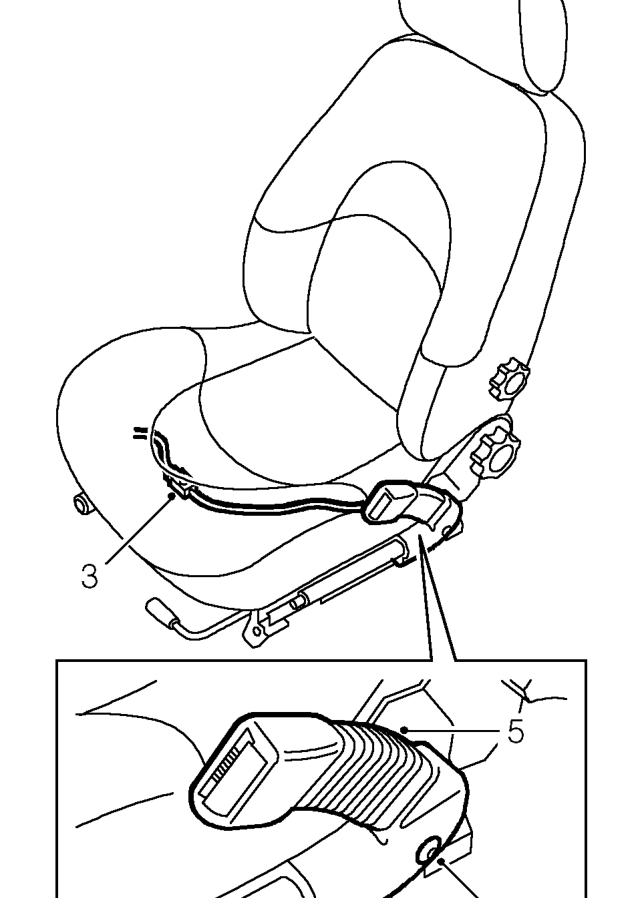

Seat belt pre-tensioner – Remove front seat. See BODY, Seats and seat belts.
  1. Release pre-tensioner harness from clip on underside of seat cushion.
  2. Remove bolt securing pre-tensioner to seat.
  3. Remove pre-tensioner from seat.

Refit

  1. Fit pre-tensioner to seat.
  2. Fit bolt securing pre-tensioner to seat and tighten to 30 Nm.
  3. Secure pre-tensioner harness to clip.
  4. Fit front seat. See BODY, Seats and seat belts.
  5. Connect battery earth lead.
