Drivers airbag module

DRIVERS AIRBAG MODULE

Service repair no - 76.73.71

CAUTION: See safety precautions before commencement of repair.

Remove

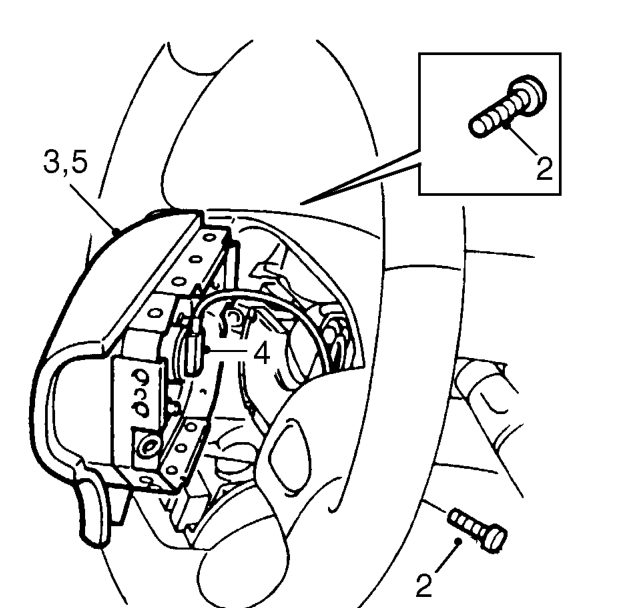

1. Remove key from starter switch, disconnect both battery leads, earth lead first, and wait 10 minutes for the SRS back-up power circuit to discharge before commencing work.

2. Remove 2 Torx bolts securing the air bag module to steering wheel.
3. Release airbag module from steering wheel.

CAUTION: Do not allow the airbag module to hang by the airbag harness.

4. Disconnect harness connector from air bag module.
5. Remove airbag module.

NOTE: ’D’ series, fit RED plug to air bag terminal.

CAUTION: Store the airbag module in accordance with the storage procedures outlined in the precautions part of this section.

NOTE: If the airbag module is to be replaced, the bar code must be recorded.

Refit

1. Position airbag module and make connection with harness upwards as shown in illustration.
2. Fit airbag to steering wheel and hand start the 2 Torx screws. Tighten screws to 9 Nm.
3. Connect battery leads, earth lead last.
4. Carry out system check by turning the ignition on and checking that the SRS warning light illuminates then extinguishes after 3 seconds.
