Airbag harness - ’k’ ’l’ and ’t’ series

8. Remove 3 screws securing rotary coupler to column switch assembly.
9. Remove rotary coupler.

Refit

1. Align the slots in the rotary coupler with the projections on the turn signal cancelling sleeve and secure to column switch assembly with screws.
2. Remove retaining tape from rotary coupler.
3. Pass rotary coupler flat harness through the lower cover bracket and fit retaining strap.
4. Connect rotary coupler harness to SRS harness multiplug.
5. Fit column lower and upper covers, secure with screws.
6. Fit driver’s side closing panel, secure with screws and fit pocket.
7. Fit steering wheel. See STEERING, Repairs.
8. Fit drivers airbag module. See this section.

AIRBAG HARNESS - ’K’ ’L’ AND ’T’ SERIES

Service repair no - 76.73.73

CAUTION: See safety precautions before commencement of repair.

Remove

1. Remove key from starter switch, disconnect both battery leads, earth lead first, and wait 10 minutes for the SRS back-up power circuit to discharge before commencing work.

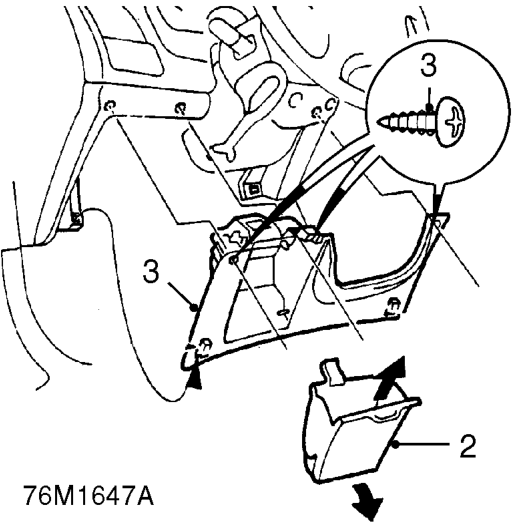

2. Remove pocket from drivers side closing panel.
3. Remove 3 screws and remove closing panel.
4. Remove 3 screws then carefully separate and remove upper and lower sections of column nacelle.
5. Remove glove box. See BODY, Interior trim components.
6. Remove front console. See BODY, Interior trim components.
