Rover 400 Workshop Manual Supplement (1999)07 · Manifold & exhaust systems
07 · Engine

Front pipe to manifold gasket

Make
Rover
Model
400 Workshop Manual Supplement
Year
1999
Section
Repairs › Front pipe to manifold gasket
Manifold & exhaust systemsFront pipe to manifold gasket

Refit

  1. Clean intermediate pipe and tail pipe mating faces.
  2. Fit new gasket to intermediate pipe flange studs.
  3. Fit tail pipe and secure rubber mountings to body.
  4. Fit nuts to flange and tighten to 50 Nm.
  5. Lower vehicle.

FRONT PIPE TO MANIFOLD GASKET

Service repair no - 30.10.26

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

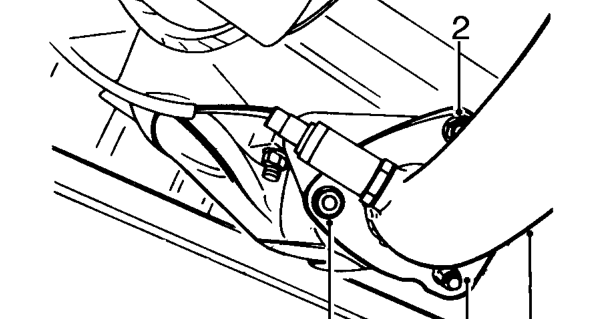

Front pipe to manifold gasket – Raise front of vehicle.
  1. Remove 3 nuts securing front pipe to manifold.
  2. Release front pipe from manifold.
  3. Remove gasket from manifold flange.

Refit

  1. Clean manifold and front pipe flanges.
  2. Fit new gasket to manifold flange.
  3. Position front pipe to manifold, fit nuts and tighten to 45 Nm.
  4. Remove stand(s) and lower vehicle.
