INLET MANIFOLD GASKET

Service repair no - 30.15.08

Remove

  1. Disconnect battery earth lead.
  2. Drain cooling system. See WORKSHOP MANUAL - COOLING SYSTEM, Adjustments.
Inlet manifold gasket – Drain cooling system. See WORKSHOP MANUAL - COOLING SYSTEM, Adjustments.

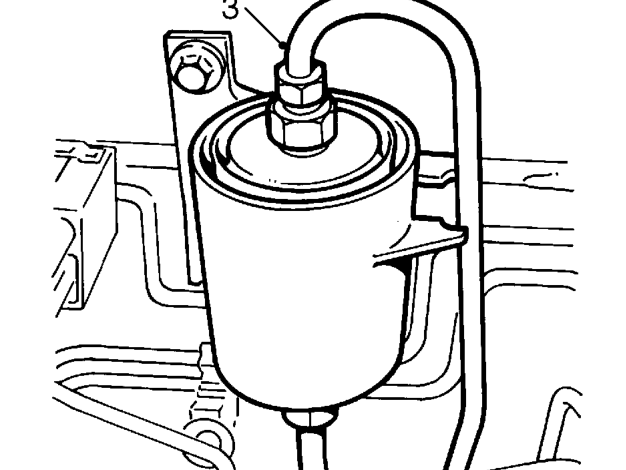

  1. Position absorbent cloth around fuel filter outlet union. Loosen union to relieve fuel pressure. Retighten union to 30 Nm.

CAUTION: To prevent damage to fuel system pipes and components, use two spanners when loosening or tightening unions.

Inlet manifold gasket – Position absorbent cloth around fuel filter outlet union. Loosen union to relieve fuel pre

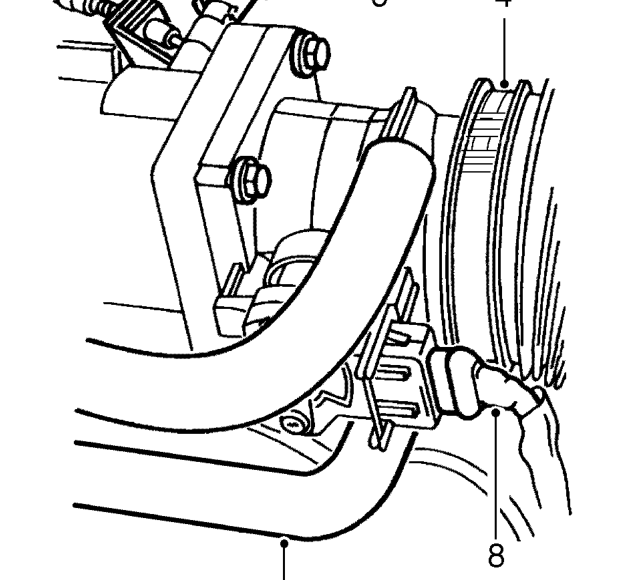

  1. Remove clip and disconnect air intake hose from throttle housing.
  2. Release clip and disconnect purge hose from inlet manifold chamber.
  3. Release throttle cable adjusting nut from abutment bracket and disconnect inner cable from throttle cam.
  4. Release clip and disconnect breather hose from throttle housing.
  5. Disconnect multiplug from TP sensor.
Inlet manifold gasket – Disconnect multiplug from TP sensor.

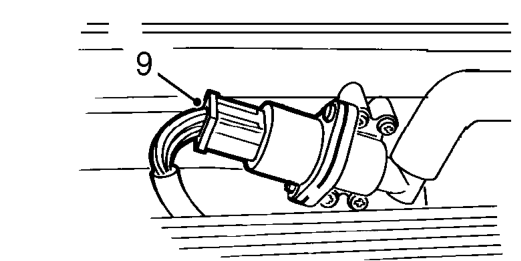

  1. Disconnect multiplug from IACV and release harness clip from bracket.
