Rover 400 Workshop Manual Supplement (1999)07 · Manifold & exhaust systems
07 · Engine

Inlet manifold gasket (page 2 of 4)

Make
Rover
Model
400 Workshop Manual Supplement
Year
1999
Section
Repairs
Manifold & exhaust systemsInlet manifold gasket · page 2 of 4
Diagram

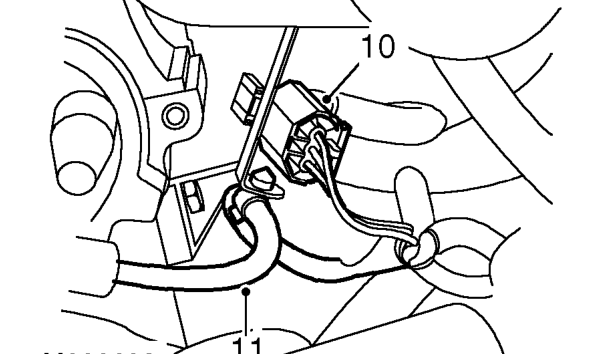

  1. Release injector harness multiplug from bracket and disconnect multiplug.

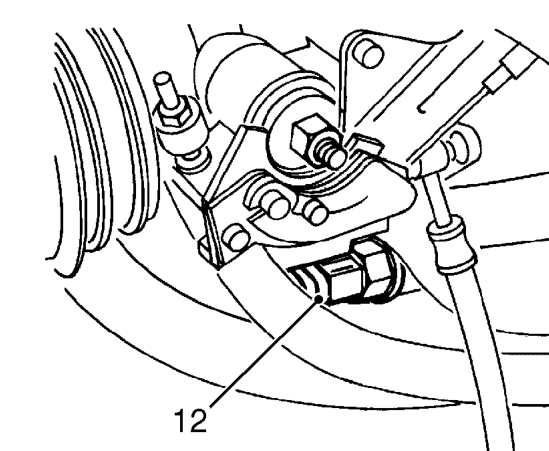

  2. Release coil h.t. lead from clip.
Release coil h.t. lead from clip.
  1. Disconnect multiplug from IAT sensor.
Disconnect multiplug from IAT sensor.

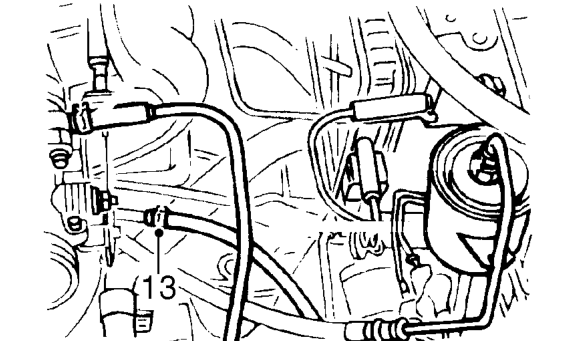

  1. Release clip and disconnect fuel return hose from fuel return pipe.

CAUTION: Plug the connections.

Release clip and disconnect fuel return hose from fuel return pipe.

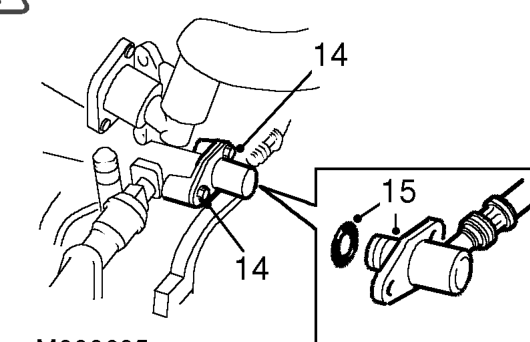

  1. Remove 2 bolts securing fuel feed pipe to fuel rail.
  2. Release fuel feed pipe from fuel rail, remove and discard ’O’ ring.

CAUTION: Plug the connections.
