EXHAUST MANIFOLD GASKET

Service repair no - 30.15.12

Remove

  1. Remove front pipe to manifold gasket. See this section.
Exhaust manifold gasket – Remove front pipe to manifold gasket. See this section.

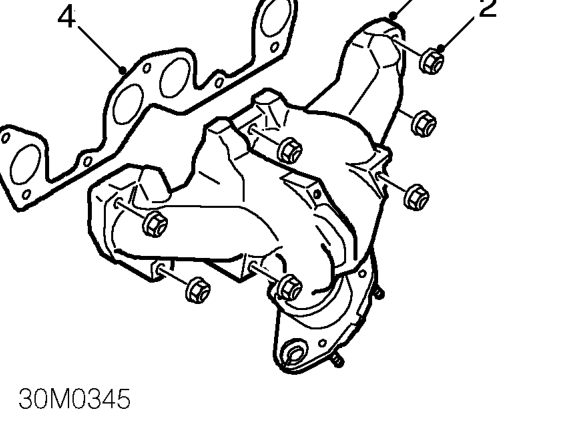

  1. Remove 7 nuts securing exhaust manifold to cylinder head.
  2. Remove exhaust manifold.
  3. Remove and discard exhaust manifold gasket.

Refit

  1. Clean mating faces of cylinder head and manifold.
  2. Fit new gasket to manifold studs.
Exhaust manifold gasket – Fit new gasket to manifold studs.

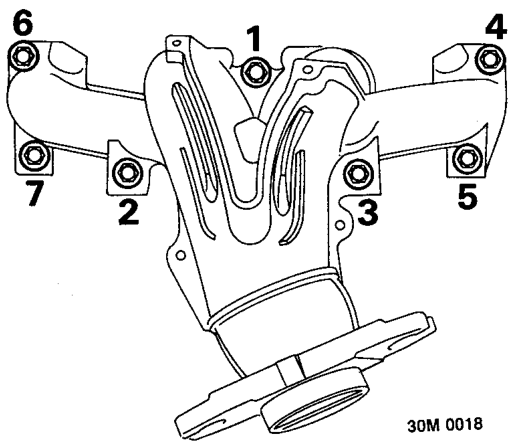

  1. Position manifold on studs, fit nuts and tighten in the sequence illustrated to 45 Nm.
  2. Fit front pipe to manifold gasket. See this section.

INLET MANIFOLD CHAMBER GASKET

Service repair no - 30.15.37

Remove

  1. Disconnect battery earth lead.
Inlet manifold chamber gasket – Disconnect battery earth lead.

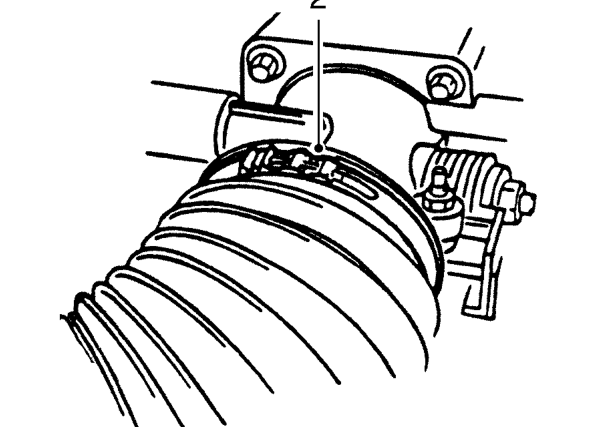

  1. Release clip and disconnect air intake hose from throttle housing.
Inlet manifold chamber gasket – Release clip and disconnect air intake hose from throttle housing.

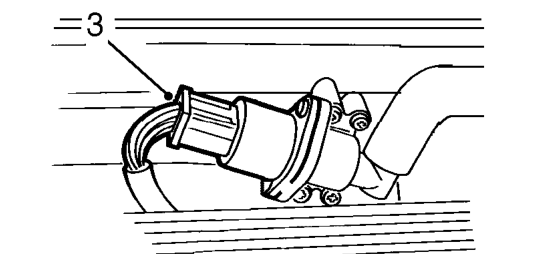

  1. Disconnect multiplug from IACV.
