Exhaust manifold gasket (page 2 of 3)

Make

Rover

Model

400 Workshop Manual Supplement

Year

1999

Section

Repairs

Manifold & exhaust systemsExhaust manifold gasket · page 2 of 3

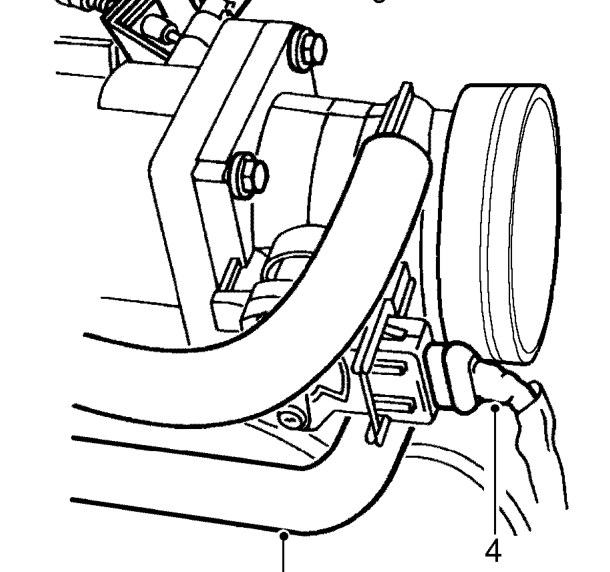

4. Disconnect multiplug from TP sensor.
5. Release clip and disconnect breather hose from throttle housing.
6. Release clip and disconnect purge hose from manifold chamber.

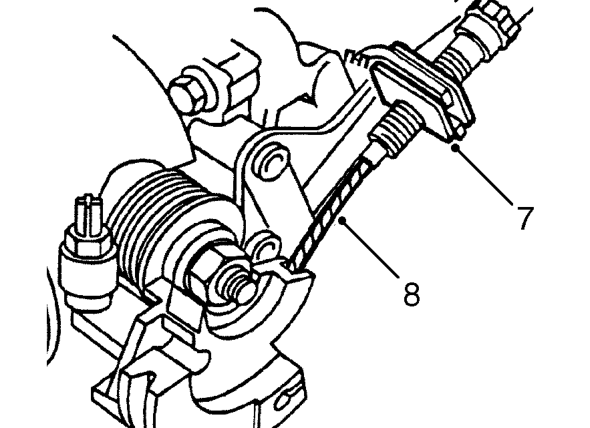

7. Release throttle cable adjusting nut from abutment bracket.
8. Disconnect throttle cable from throttle cam.

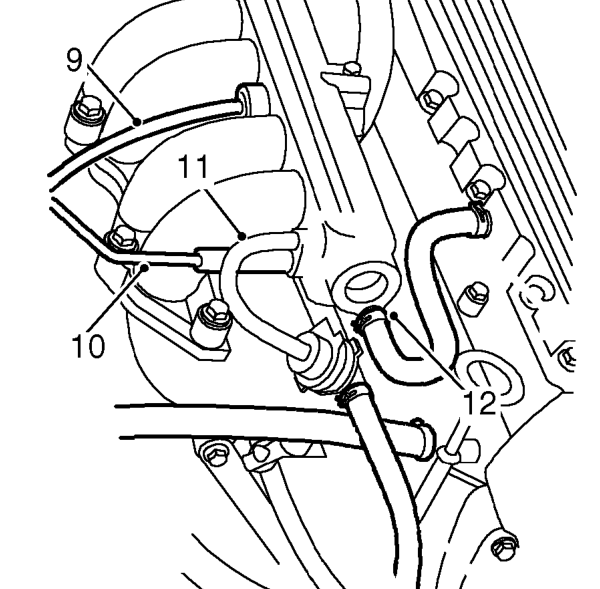

9. Depress plastic collar and disconnect brake servo vacuum hose from manifold chamber.
10. Disconnect ECM vacuum hose from manifold chamber.
11. Disconnect fuel pressure regulator vacuum hose from manifold chamber.
12. Release clip and disconnect breather hose from manifold chamber.

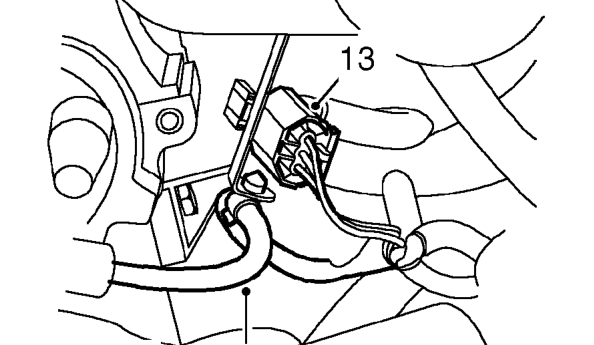

13. Release injector harness multiplug from mounting bracket beneath throttle housing.
14. Release coil h.t. lead from mounting bracket beneath throttle housing.

07 Engine
