Rover 400 Workshop Manual Supplement (1999)07 · Manifold & exhaust systems
07 · Engine

Tail pipe

Make
Rover
Model
400 Workshop Manual Supplement
Year
1999
Section
Repairs › Tail pipe
Manifold & exhaust systemsTail pipe

Refit

  1. Clean mating faces of intermediate pipe, catalytic converter and tail pipe.
  2. Fit NEW gaskets to tail pipe flange end of intermediate pipe and catalytic converter flange.
  3. Fit intermediate pipe to tail pipe, align and connect to catalytic converter flange.
  4. Fit nuts securing intermediate pipe to catalytic converter and tighten to 50 Nm.
  5. Fit nuts securing intermediate pipe to tailpipe and tighten to 50 Nm.
  6. Secure intermediate pipe mounting rubbers to body.
  7. Lower vehicle.

TAIL PIPE

Service repair no - 30.10.22

Remove

  1. Raise vehicle on 4 post ramp.
Tail pipe – Raise vehicle on 4 post ramp.

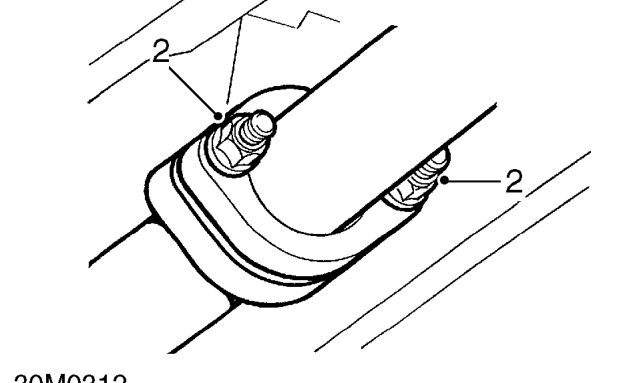

  1. Remove 2 nuts securing intermediate pipe to tail pipe.
Tail pipe – Remove 2 nuts securing intermediate pipe to tail pipe.

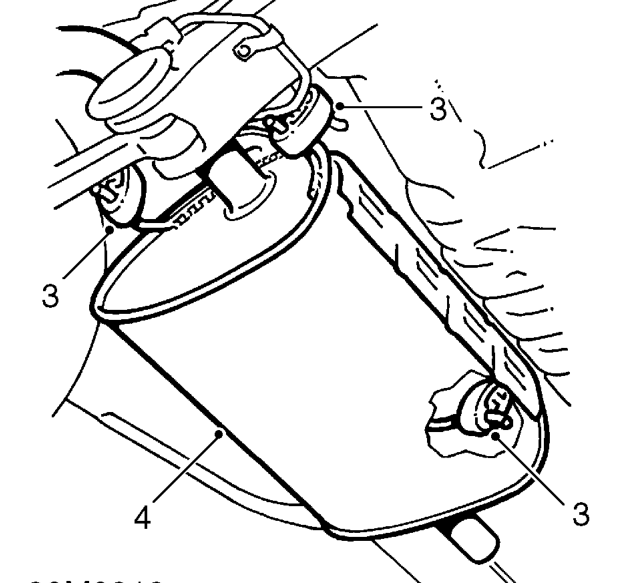

  1. Release 3 rubber mountings securing tail pipe to body.
  2. Remove tail pipe.
  3. Remove and discard gasket.
