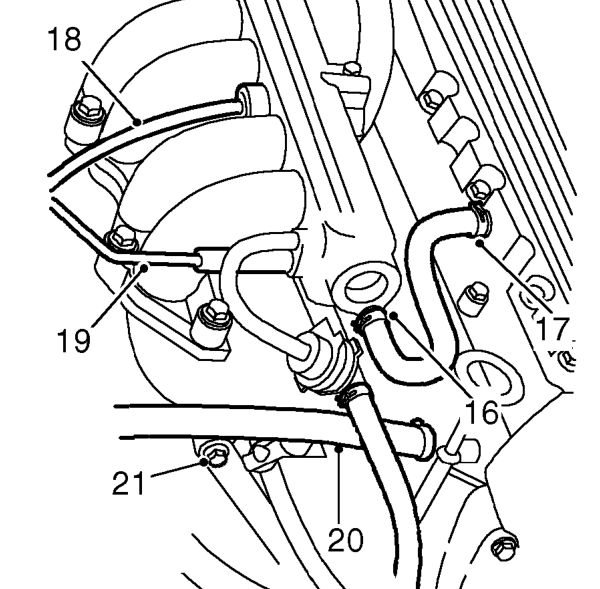

16. Release clip and disconnect breather hose from inlet manifold chamber.
17. Release clip and remove breather hose from camshaft cover.
18. Depress plastic collar and disconnect brake servo vacuum pipe from inlet manifold chamber.
19. Disconnect ECM vacuum pipe from inlet manifold chamber.
20. Loosen clip and disconnect coolant hose from inlet manifold.
21. Remove bolt securing engine steady bar to manifold.

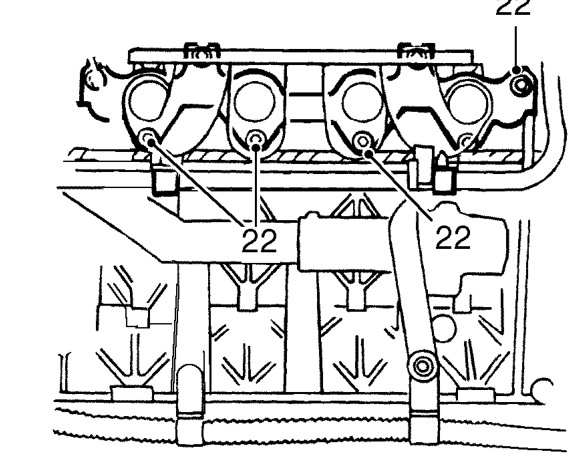

22. Working from the centre outwards, progressively loosen then remove 6 bolts and 2 nuts securing inlet manifold to cylinder head.
23. Remove inlet manifold, remove and discard gasket.
