Rear screen (page 2 of 5)

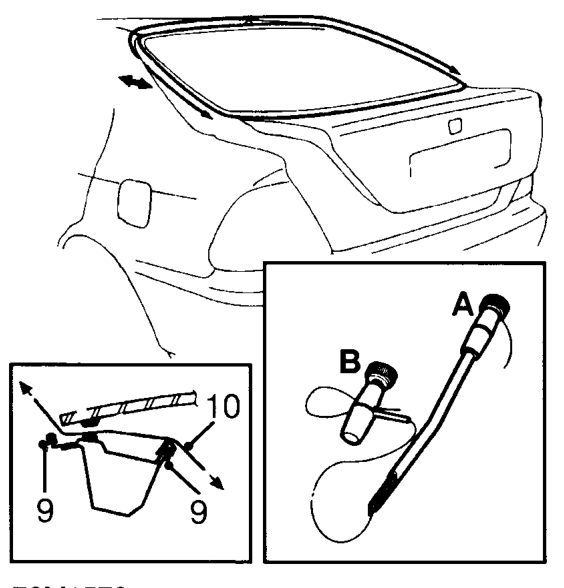

9. Fit protective tape to the inner and outer edges of the tailgate.
10. Use cutting wire, attached to handle A inside the screen and to handle B outside the screen. With assistance carefully cut through sealer at the top and sides.

CAUTION: Take care not to damage the body work and tailgate harness.

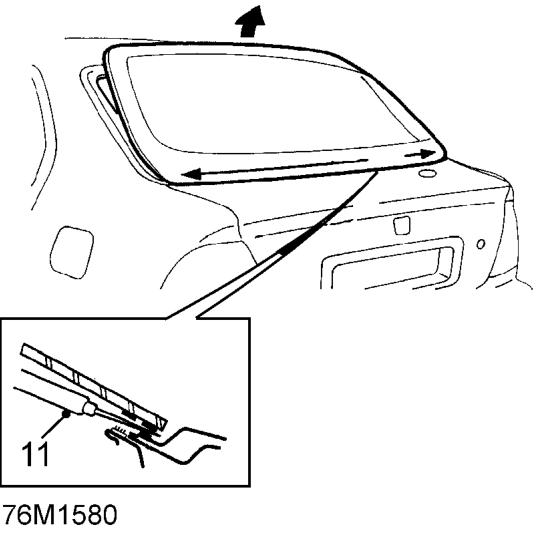

11. Use a sharp knife to cut through sealer along the lower edge.
12. Fit suction cups and lift glass from tailgate.

CAUTION: Lay glass on felt covered supports, do not stand on edge. Any chipping of the glass edge may develop into cracks.

Refit

1. Remove old fasteners from tailgate.
2. Carefully cut old sealer on tailgate flange to obtain a smooth surface 2mm thick.

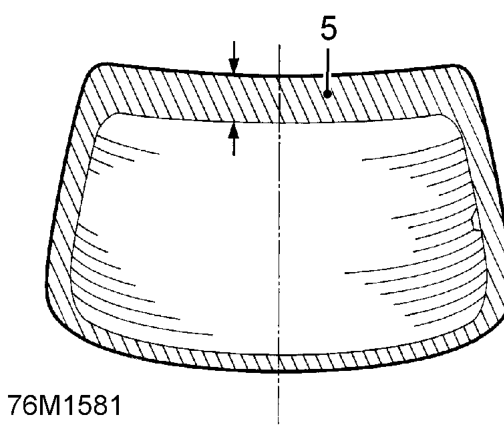

3. Original glass: Carefully cut back old sealer to obtain a smooth finish without damage to obscured surface. Remove old fasteners from glass.

4. Apply cleaning solvent to tailgate flange. wipe with clean gauze.
5. Apply cleaning solvent around edge of glass. Wipe with clean gauze.

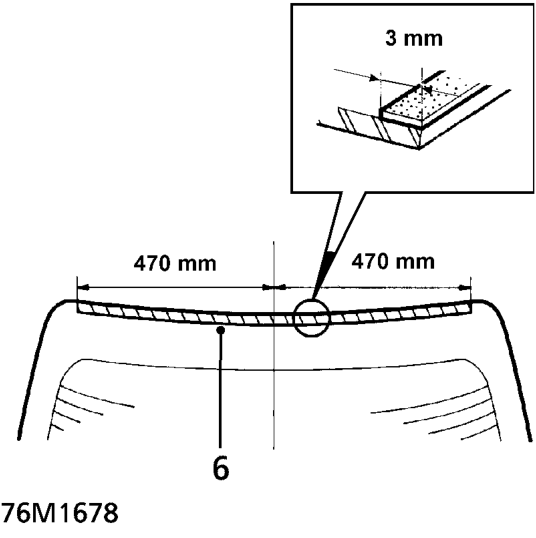

6. Fit double sided adhesive tape to the inside upper edge of glass as shown.
