Rear screen (page 4 of 5)

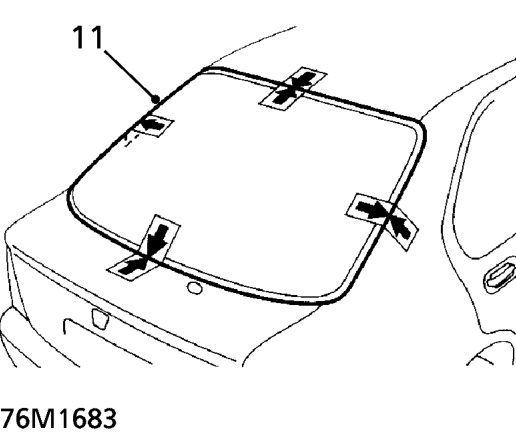

11. With assistance position rear glass to tailgate, centralise it and fit strips of tape across glass and body for alignment. Cut tape between glass and tailgate before removing glass.

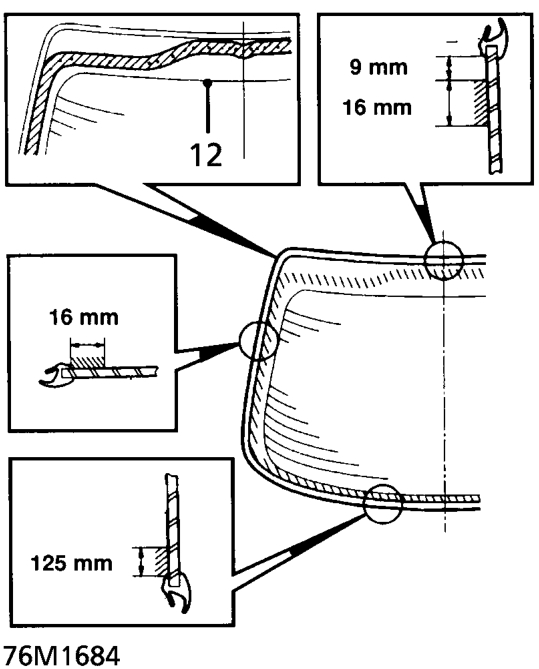

12. Apply glass primer around edge of glass

NOTE: Use printed dots as a guide.

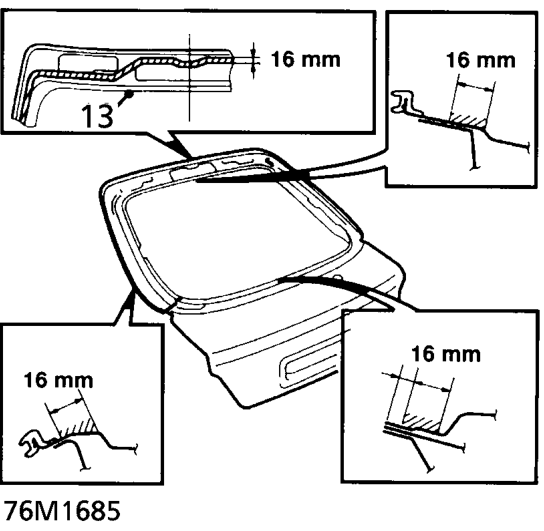

13. Apply body primer to tailgate flange.

CAUTION: Do not mix primer sponges. Keep primed surfaces clean and never touch with hands.

14. Fit pre-cut nozzle to sealant cartridge, remove lid, shake out crystals and install in applicator gun.
