Rover 400 Workshop Manual (1995-2000)26 · Body
26 · Body & interior

Rear screen (page 3 of 5)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Screens
BodyRear screen · page 3 of 5
Diagram

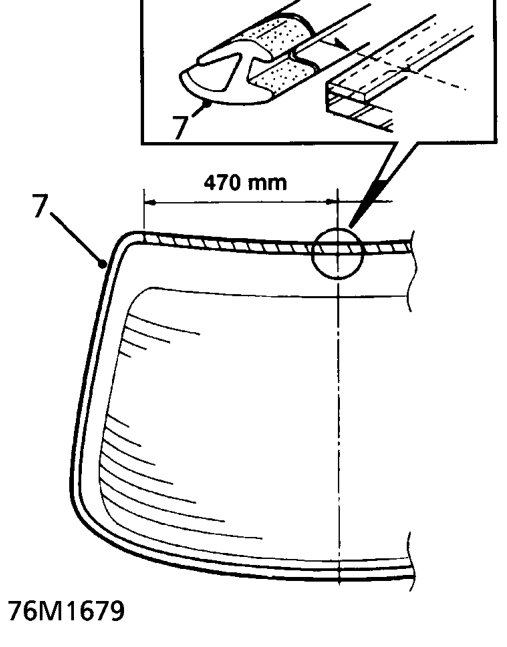

  1. Fit moulding to edge of glass.
Fit moulding to edge of glass.

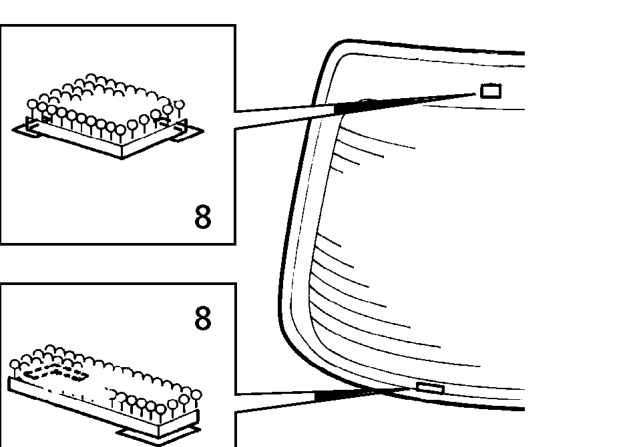

  1. Fit upper and lower fasteners to glass.

NOTE: Glass marked for fastener position.

Fit upper and lower fasteners to glass.

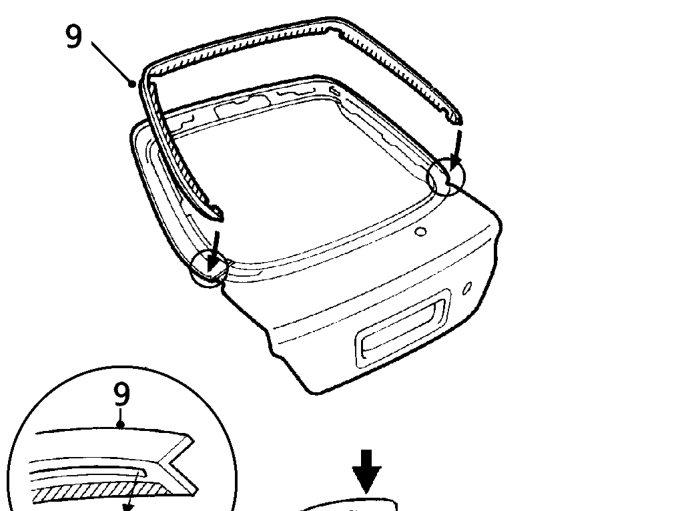

  1. Fit sub-moulding to edge of tailgate.

NOTE: Do not remove protection from glass side of double sided tape at this stage.

Fit sub-moulding to edge of tailgate.

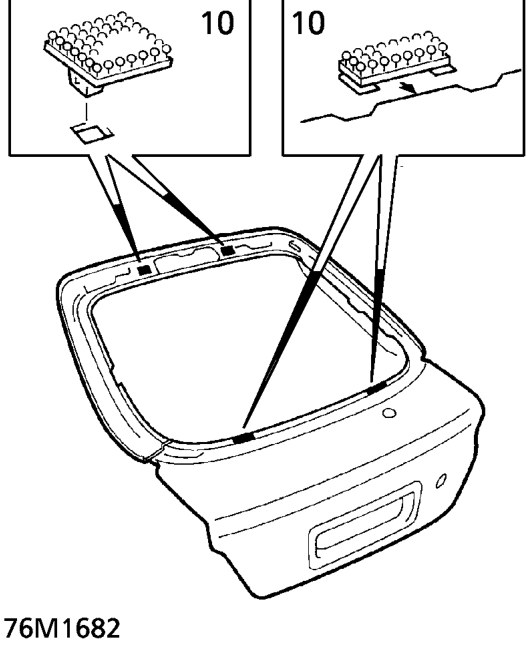

  1. Fit upper and lower fasteners to tailgate.
