Windscreen (page 3 of 5)

Refit

1. Carefully cut old sealer on body flange to obtain a smooth surface 2 mm thick. and remove old dam from flange without damaging the paint surface.
2. Original glass: Carefully cut back old sealer to obtain a smooth surface without damaging painted surface. remove old dam material from glass.

CAUTION: Lay glass on felt covered supports, do not stand on edge. Any chipping of glass edge may develop into cracks.

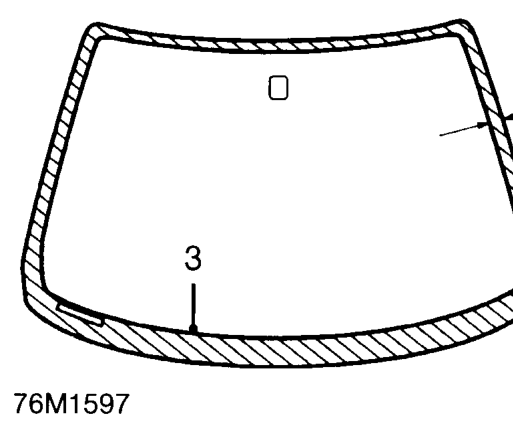

3. Apply cleaning solvent to body flange and shaded area on windscreen.

CAUTION: Do not touch cleaned or primed surfaces with fingers.

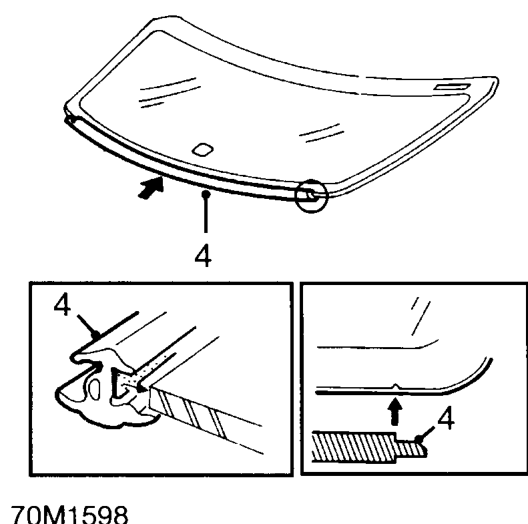

4. Position and secure upper moulding to windscreen glass.

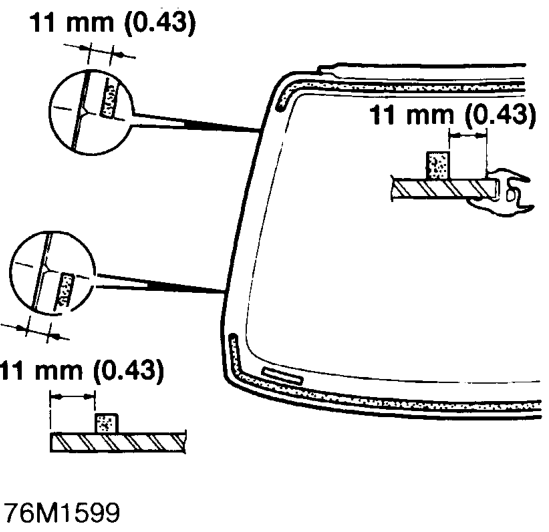

5. Align and secure upper dam rubber 11 mm from edge of windscreen glass.
