Windscreen (page 4 of 5)

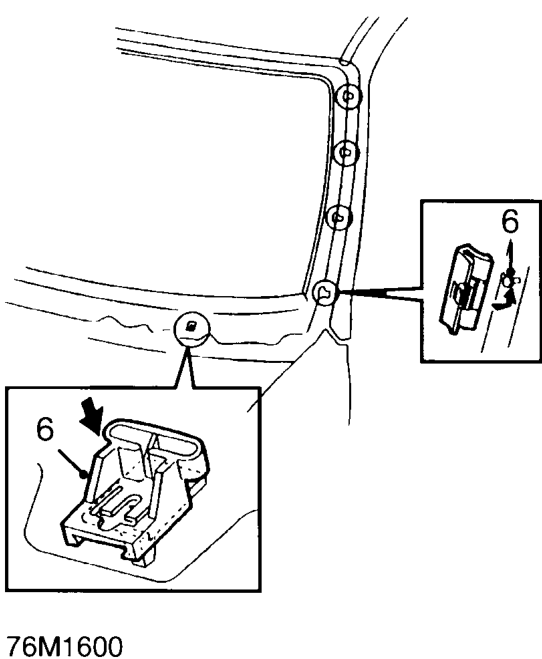

6. Fit windscreen support brackets, do not tighten screws and fit side finisher retainers.

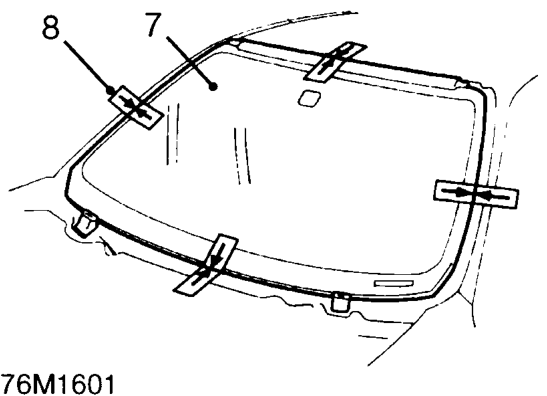

7. Attach suction cups to glass, locate glass on brackets and position to body and with assistance, align glass to body and tighten bracket screws.
8. Apply tape from glass to body in four positions shown and cut tape at glass edge for fitting reference. Remove glass.

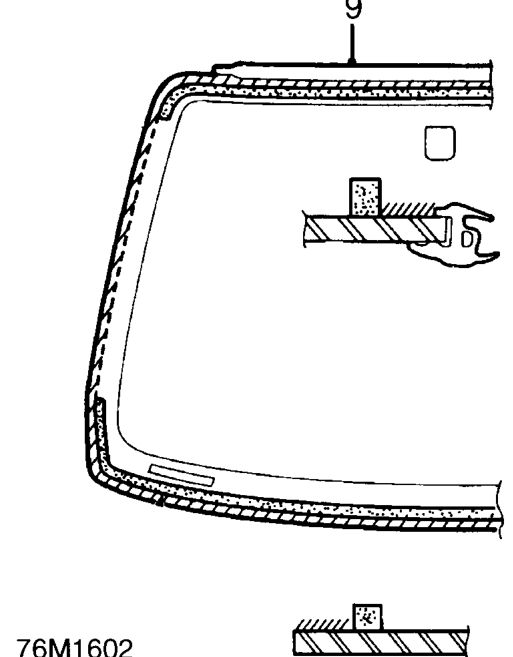

9. Apply Glass Primer around glass as indicated.

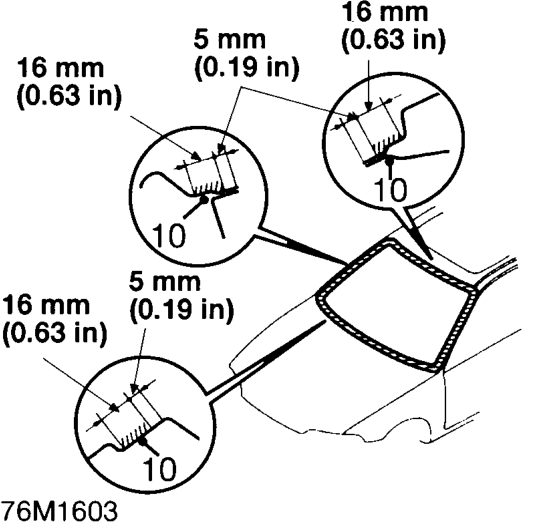

10. Apply Body Primer to body flange as indicated.

CAUTION: Use a new sponge for each primer.

11. Fit pre-cut nozzle to sealer cartridge, and install in applicator gun
