Rover 400 Workshop Manual (1995-2000)24 · Brakes
24 · Brakes

Front brake caliper components (Brakes)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Description and operation › Front brake caliper components
BrakesFront brake caliper components

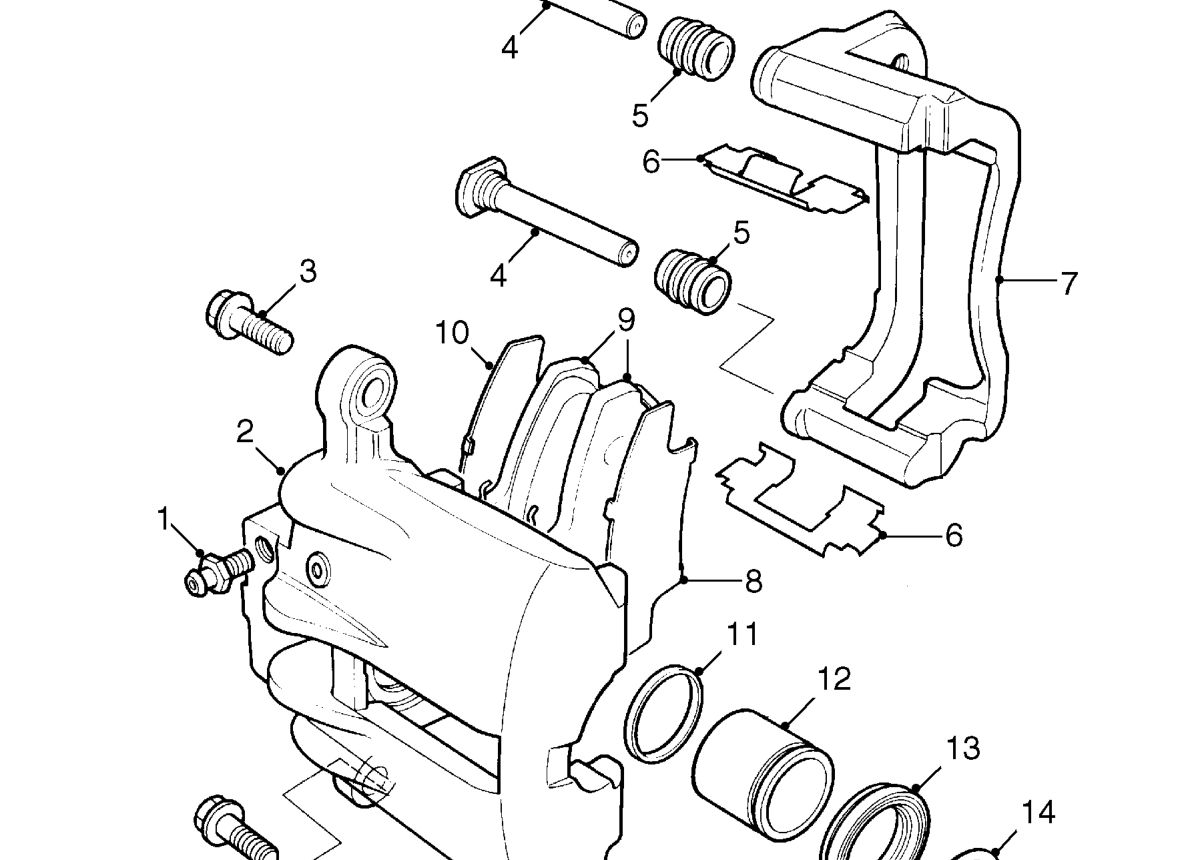

FRONT BRAKE CALIPER COMPONENTS

Front brake caliper components
  1. Bleed screw
  2. Caliper body
  3. Guide pin bolt
  4. Guide pin
  5. Boot
  6. Pad retainer
  7. Caliper carrier
  8. Outer pad shim
  9. Brake pads
  10. Inner pad shim
  11. Piston seal
  12. Piston
  13. Dust cover
  14. Shim
