BrakesRear brake caliper components continued

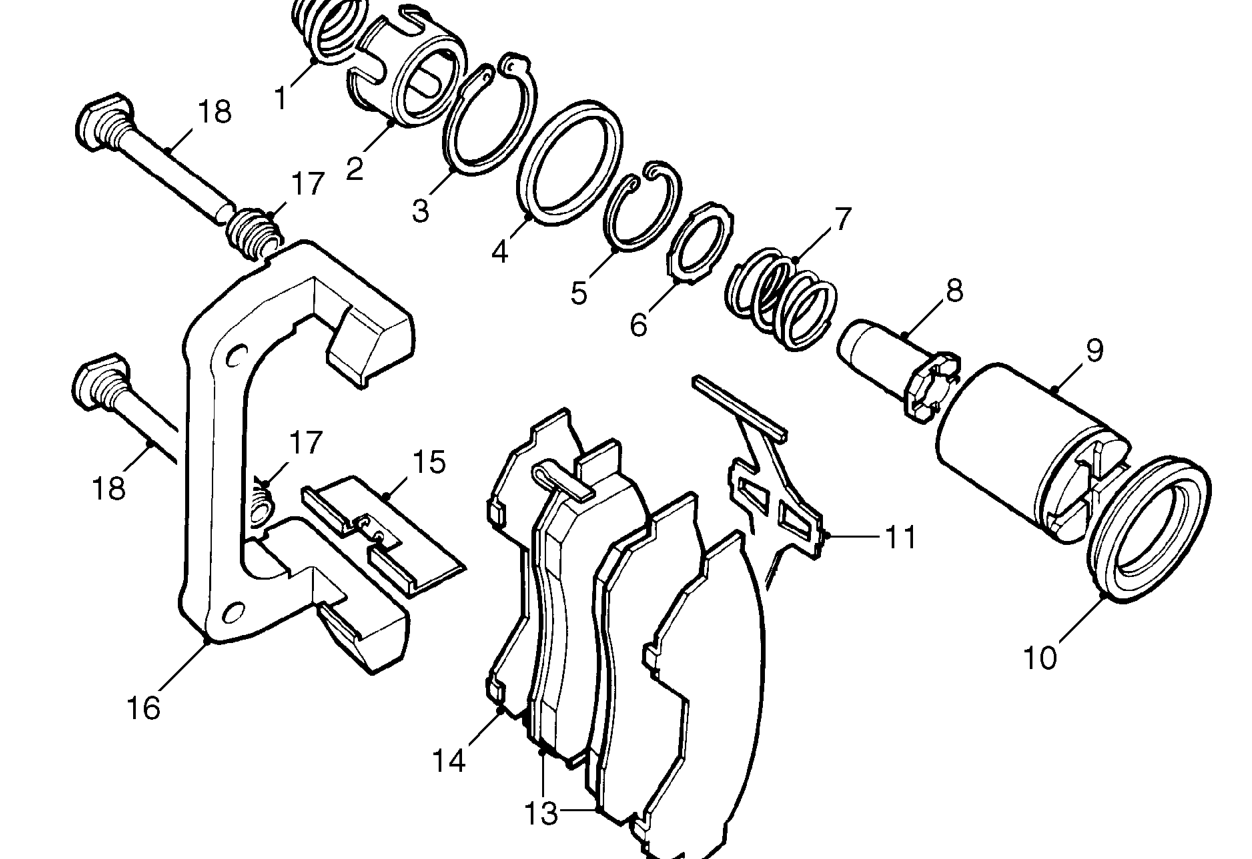

Rear brake caliper components continued

1. Adjusting spring ’A’
2. Spring cover
3. Retaining ring, large
4. Piston seal
5. Retaining ring, small
6. Thrust washer
7. Adjusting spring ’B’
8. Adjusting nut
9. Piston assembly, outer
10. Piston boot
11. Pad spring
12. Outer pad shim
13. Brake pads
14. Inner pad shim
15. Pad retainer - 2 off
16. Caliper bracket
17. Guide pin boot - 2 off
18. Guide pin - 2 off
