BrakesRear drum brake components

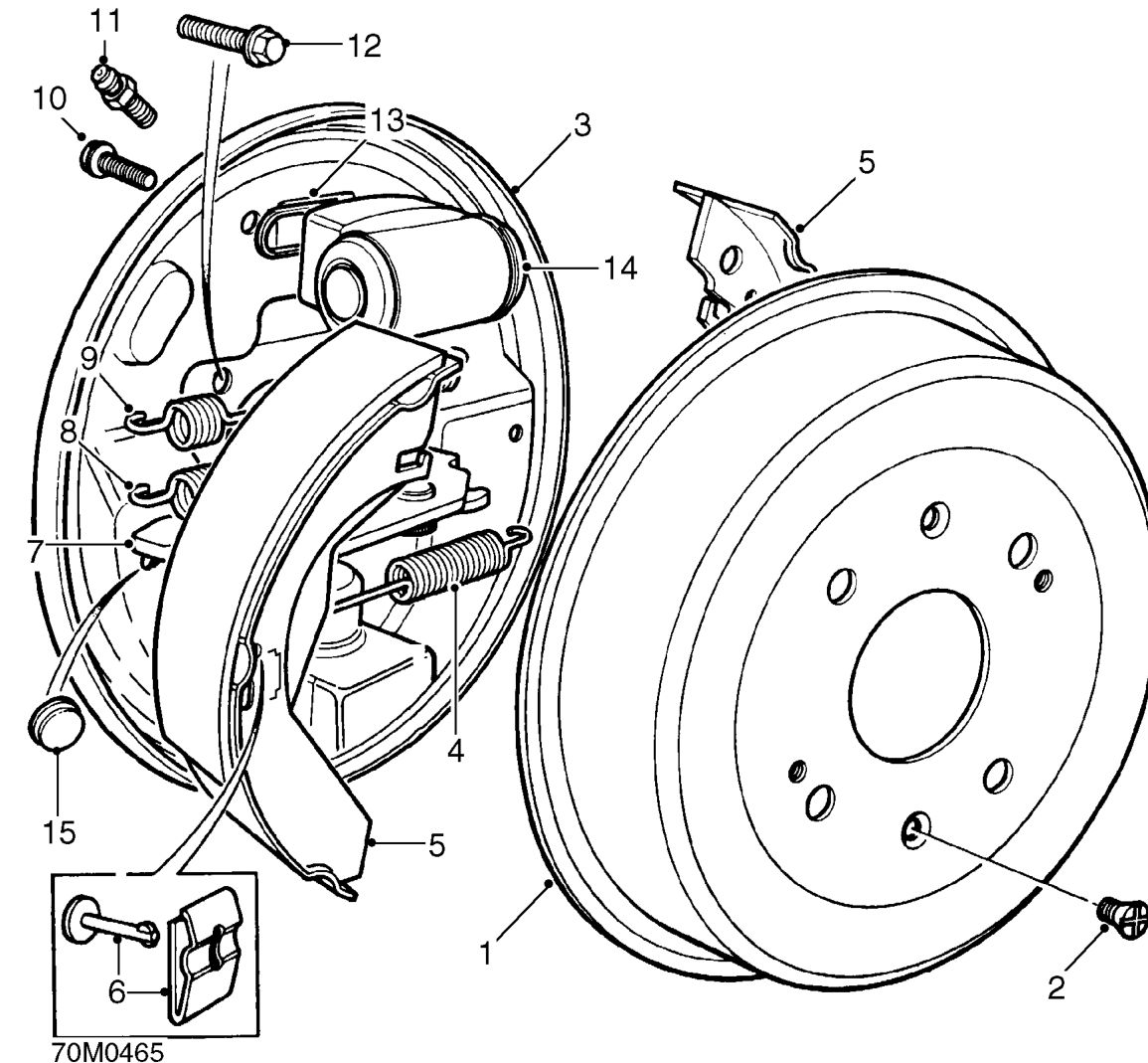

REAR DRUM BRAKE COMPONENTS

1. Brake drum
2. Screw, drum to hub - 2 off
3. Backplate
4. Spring, adjuster
5. Brake shoes
6. Retaining pin and spring clip
7. Strut, adjuster quadrant
8. Spring - wheel, cylinder return
9. Spring - adjuster
10. Bolt, wheel cylinder to backplate
11. Bleed screw
12. Bolt, backplate to hub
13. Seal, wheel cylinder to backplate
14. Wheel cylinder
15. Inspection plug
