Drive shaft and inner joint - ’k’, ’l’ & ’t’ series

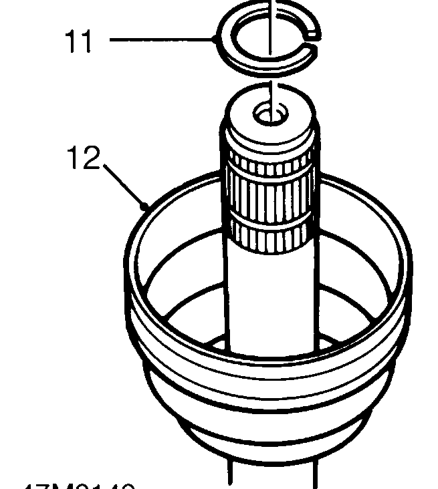

11. Remove stopper ring from shaft.
12. Remove gaiter from shaft and inspect for damage and renew if necessary.
13. Clean shaft and joint components.

Refit

1. Fit gaiter to shaft.
2. Fit stopper ring to shaft, fit spider to shaft and secure with circlip.
3. Fit bearings to spider with shoulders facing outwards.
4. Apply 120g to 130g of grease from the sachet to inner joint and bearings.
5. Fit joint onto shaft.
6. Position gaiter to joint and use a Band-it thriftool to secure the 2 new clips.
7. Fit drive shaft. See this section.

DRIVE SHAFT AND INNER JOINT - ’K’, ’L’ & ’T’ SERIES

Service repair no - 47.10.25

Remove

1. Remove drive shaft. See this section.
2. Place drive shaft in vice.

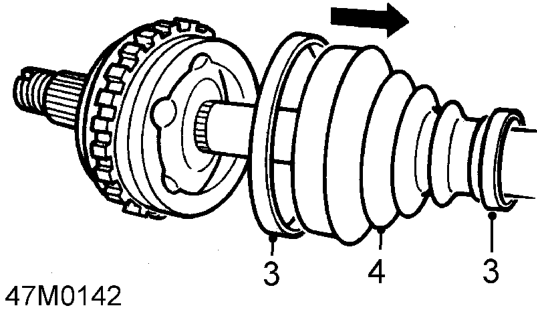

3. Release both gaiter clips from outer joint and discard.
4. Slide gaiter along shaft to gain access to outer joint.

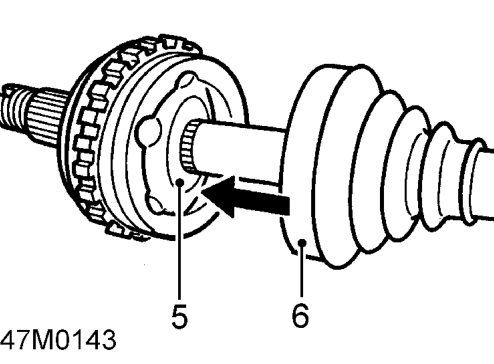

5. Using a suitable drift against the inner part of joint, remove joint from shaft.
6. Inspect gaiter for damage and renew if necessary.

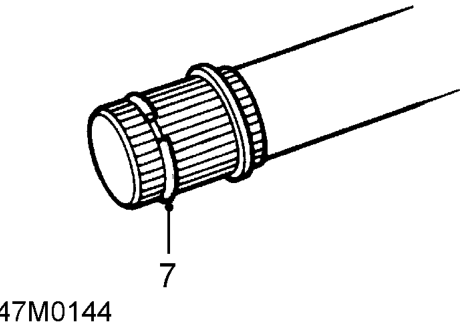

7. Remove circlip from shaft and discard.
8. Fit new drive shaft to vice.
