Selector shaft oil seal (page 2 of 2)

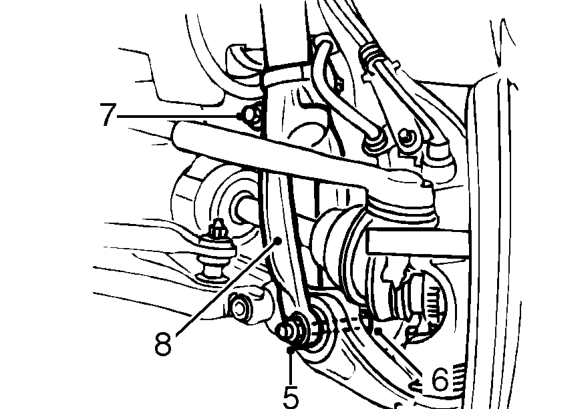

5. Remove and discard nut securing damper fork to lower suspension arm.
6. Remove through bolt from lower suspension arm.
7. Remove bolt securing damper fork to damper.
8. Remove damper fork.

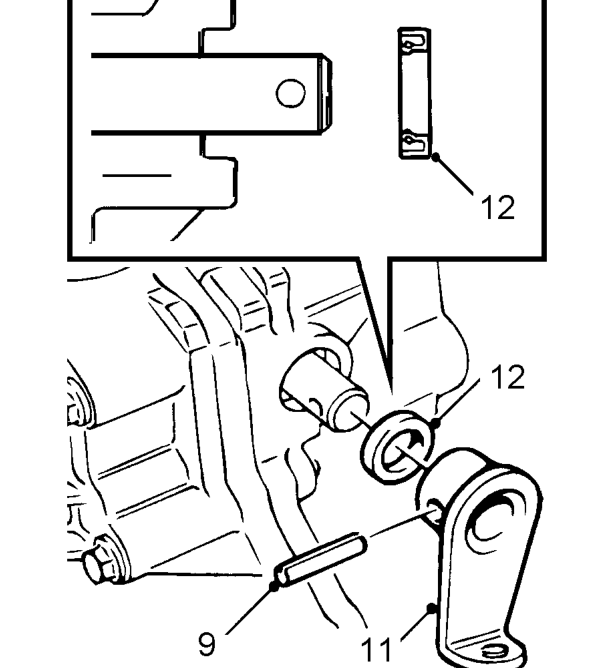

9. Gaining access from under LH wheel arch and using assistance, drive out roll pin retaining selector lever to selector shaft.

NOTE: Use a pin punch and suitable extension piece to remove roll pin.

10. Discard roll pin.
11. Remove selector lever.
12. Carefully prise selector shaft oil seal out of recess, discard oil seal.
