Brakes and ABSSpecial tools · page 1 of 2
SPECIAL TOOLS
| No. | Honda Number | Rover Number | Description |
|---|---|---|---|
| 1 | 07HAE – SG00100 | 18G 1690 | Brake Spring Compressor |
| 2 | 07JAG – SD40100 | 18G 1689 | Adjuster Bolt Gauge |
| 3 | 07404 – 5790300 | 18G 1692 | Vacuum Gauge |
| 4 | 07406 – 5790200 | 18G 1693 | Oil Pressure Gauge |
| 5 | 07410 – 5790100 | 18G 1703 | Pressure Gauge Attachment C |
| 6 | 07410 – 5790500 | 18G 1694 | Tube Joint Adaptor |
| 7 | 07510 – 6340101 | 18G 1695 | Pressure Gauge Joint Pipe – Non ABS Cars |
| 07HAK – SG00110 | 18G 1691 | Pressure Gauge Joint Pipe – ABS Cars | |
| 8 | 07510 – 6340300 | 18G 1696 | Vacuum Joint Tube A |
| 9 | 07914 – SA50000 | 18G 1588 | Snap Ring Pliers |
| 10 | 07916 – 6390001 | 18G 1596 | Locknut Wrench |
The tools illustrated in this section are Honda tools, and Rover do not always have an equivalent. Where an equivalent Rover tool is available, it may not be visually identical to the Honda tool.
- Brake Spring Compressor
- Adjuster Bolt Gauge
- Vacuum Gauge
- Oil Pressure Gauge
- Pressure Gauge Attachment C
- Tube Joint Adaptor
- Pressure Gauge Joint Pipe
- Locknut Wrench

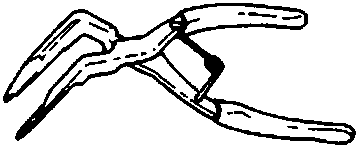

- Snap Ring Pliers
INFORMATION

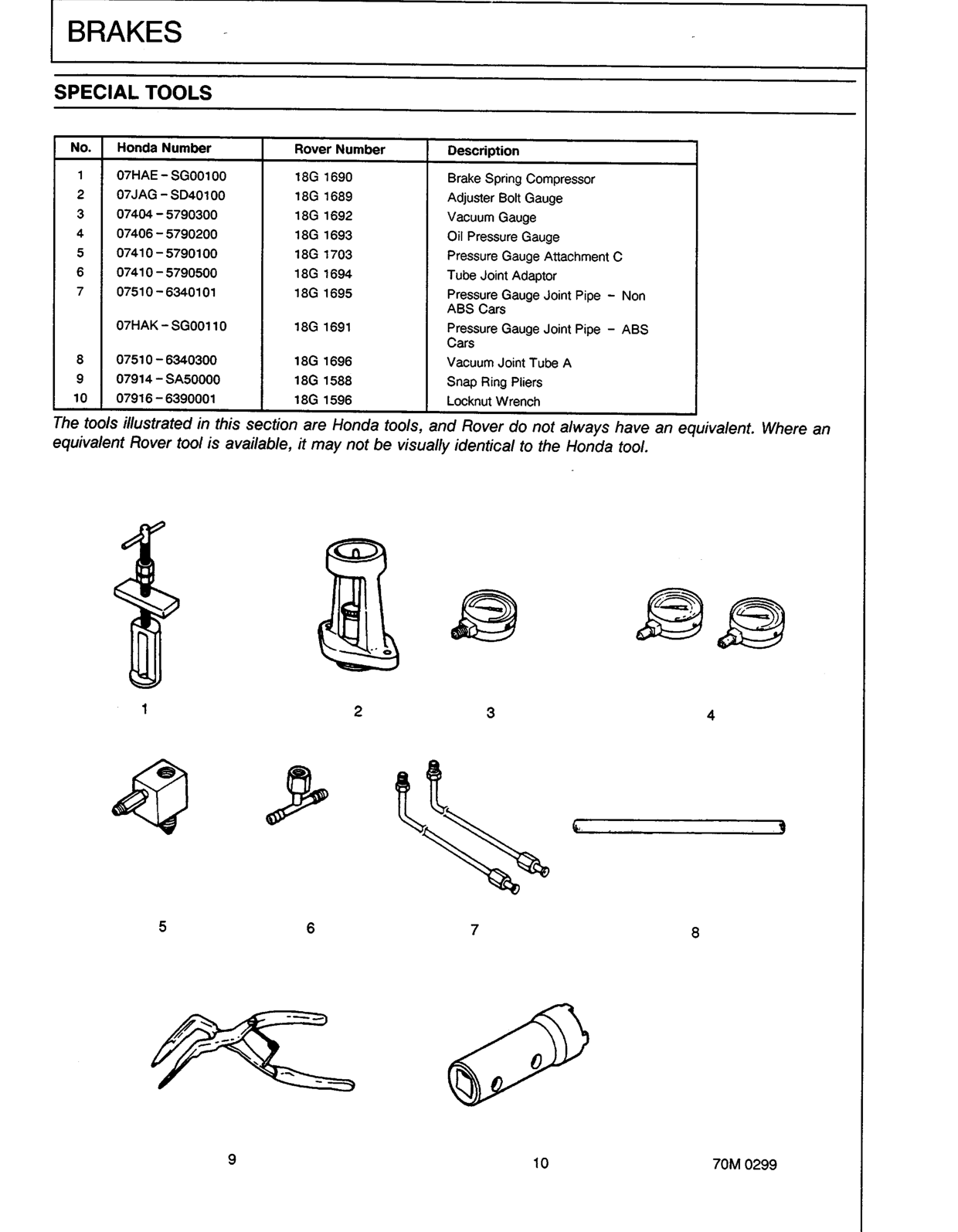

Original page
