Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition05 · Cooling system, manifold and exhaust
05 · Engine

Components

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Cooling system: repairs › Components
Cooling system, manifold and exhaustComponents

Components

Note: Use new O-rings when reassembling.

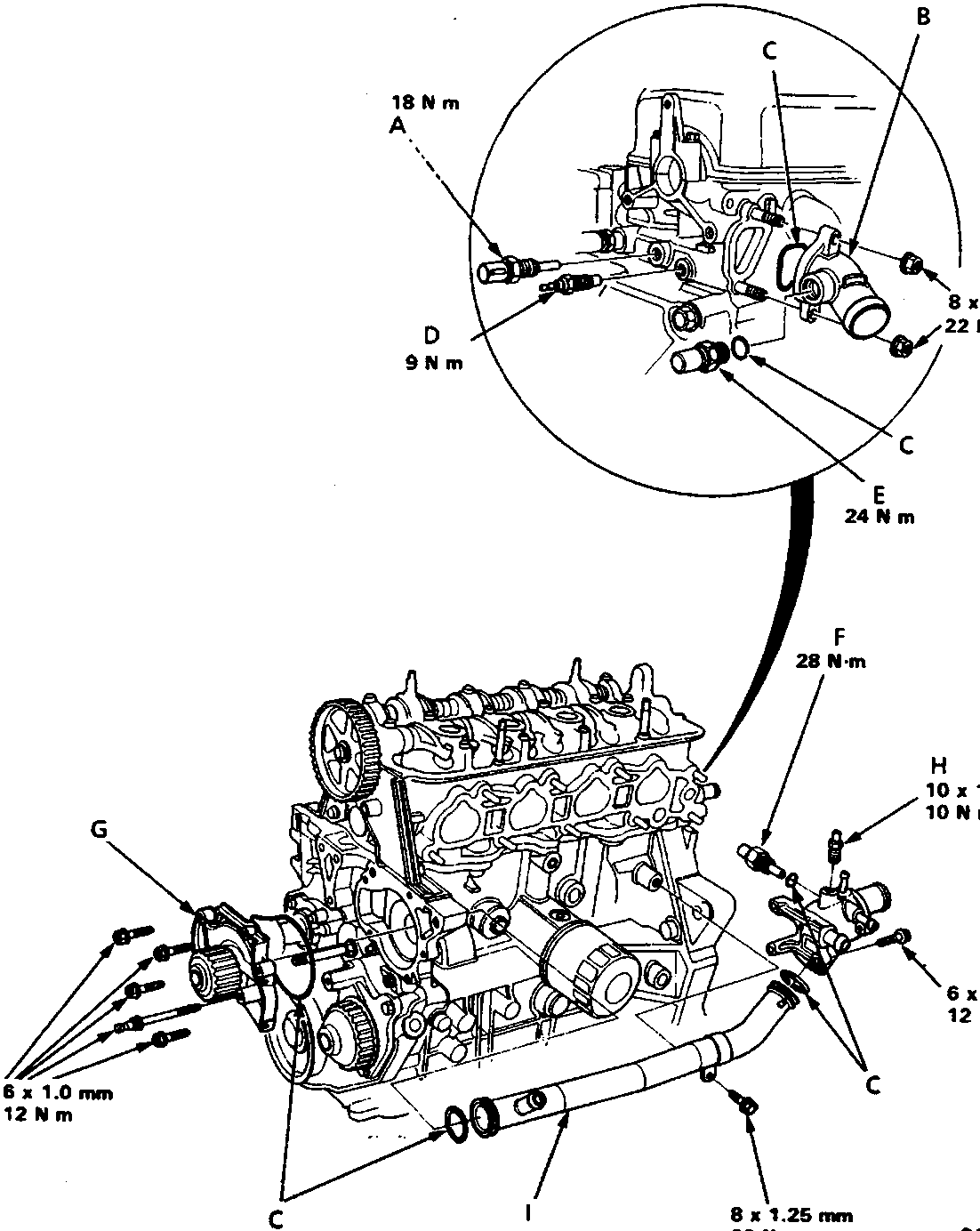

Diagram of the water pump and associated cooling system components, including sensors, housing, O-rings, switches, bleed bolt, and connecting pipe with torque specifications.
  1. A Engine coolant temperature (ECT) sensor
  2. B Water outlet housing
  3. C O-ring
  4. D ECT gauge sending unit
  5. E ECT switch B
  6. F ECT switch A
  7. G Water pump
  8. H Bleed bolt
  9. I Connecting pipe
