Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition05 · Cooling system, manifold and exhaust
05 · Engine

Components

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Cooling system: repairs › Components
Cooling system, manifold and exhaustComponents · page 1 of 4

Components

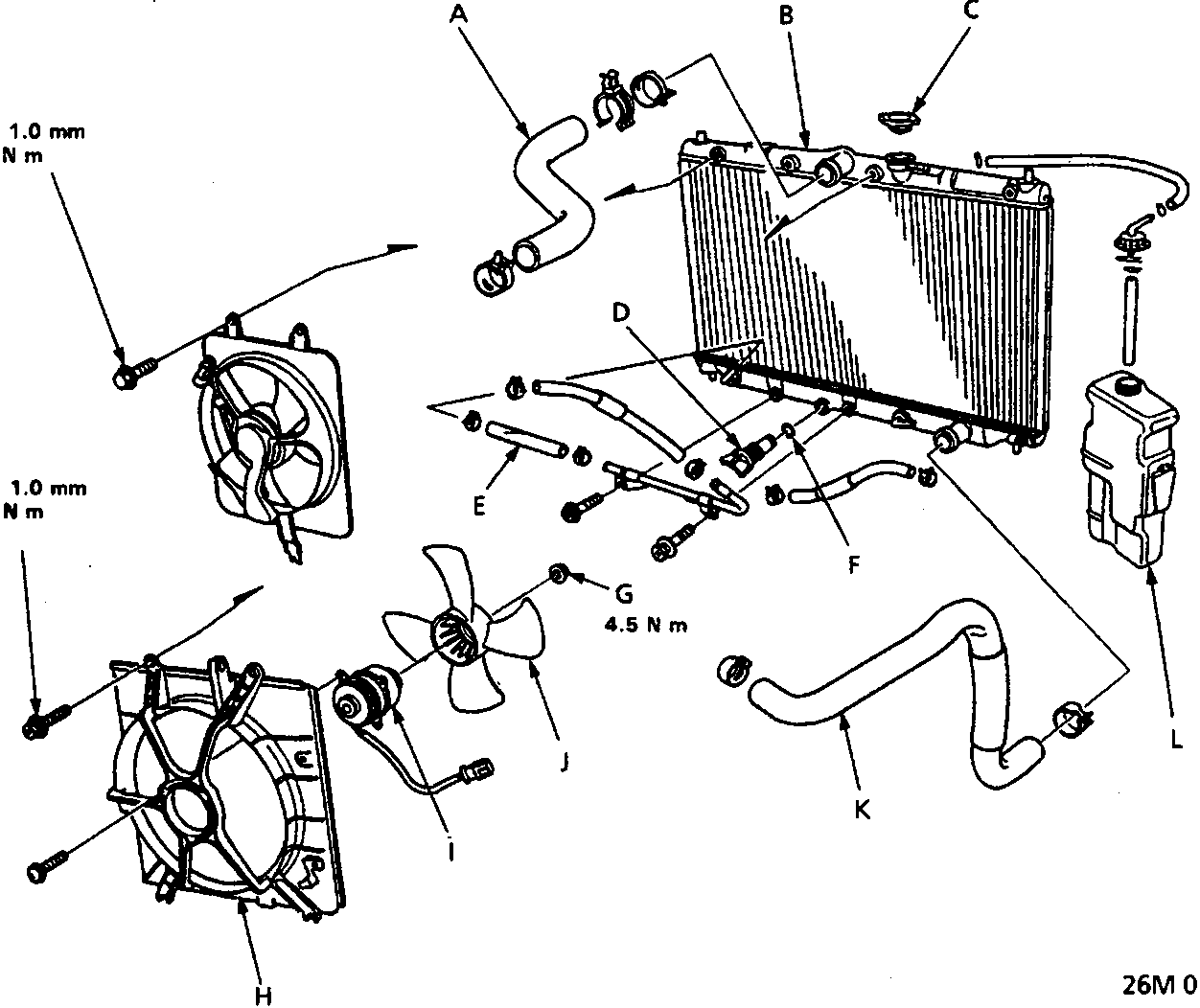

Exploded view diagram of the radiator assembly showing components labeled A through L, including hoses, fan shroud, fan motor, and coolant reservoir. Torque specifications are indicated as 6 x 1.0 mm 10 N m and 4.5 N m. Figure number 26M 0142 is printed in the bottom right corner.
AUpper radiator hoseFO-ringKLower radiator hose
BRadiatorGSelf locking nutLCoolant reservoir
CRadiator capHFan shroud
DDrain plugIFan motor
EATF cooler hoses (A/T)JRadiator fan
