Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition05 · Cooling system, manifold and exhaust
05 · Engine

Components (page 4 of 4)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Cooling system: repairs
Cooling system, manifold and exhaustComponents · page 4 of 4

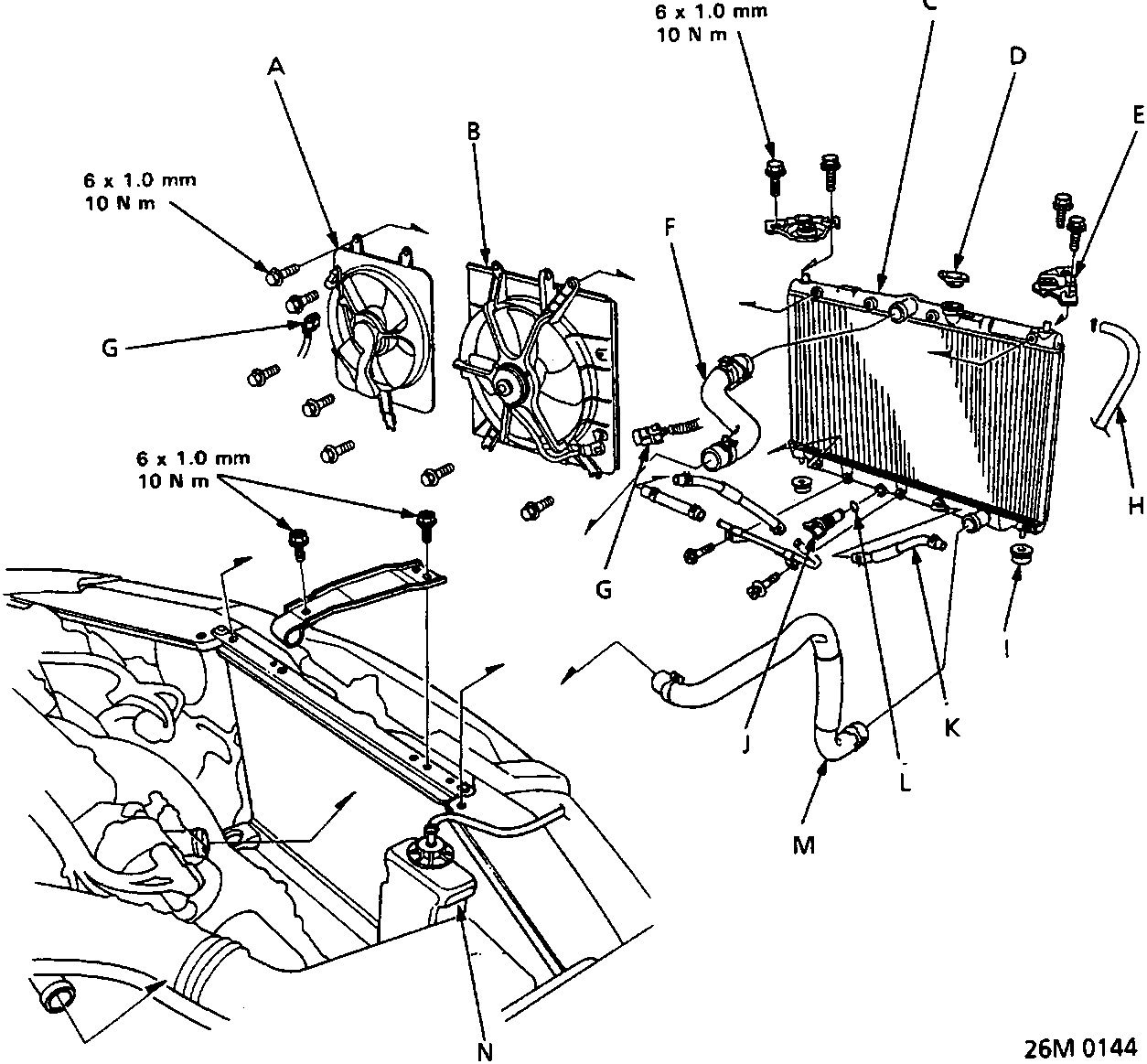

Exploded view diagram of the cooling system components including condenser fan, radiator, hoses, and reservoir with callout letters A through N. Torque values 6 x 1.0 mm 10 N m are indicated for specific fasteners. Figure number 26M 0144 is in the bottom right corner.
ACondenser fan/shroud assemblyILower cushion
BRadiator fan/shroud assemblyJdrain plug
CRadiatorKATF cooler hoses (A/T)
DRadiator capLO-ring
EUpper bracket and cushionMLower hose
FUpper hoseNReservoir
GFan motor connector
HReservoir hose
