Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition03 · Engine
03 · Engine

Rear balancer (page 3 of 3)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Engine lubrication: repairs
EngineRear balancer · page 3 of 3

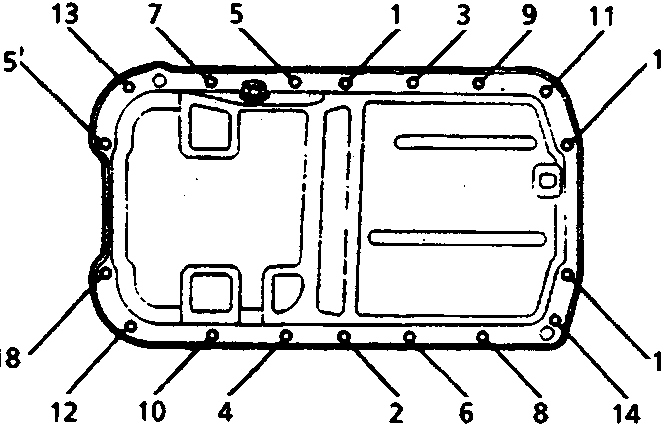

Diagram of an engine oil pan with numbered callouts from 1 to 18 indicating bolt and nut locations around the perimeter. The figure number 12M0572 is printed below the diagram.

Note: Use a new gasket.

  1. Tighten the bolts and nuts to 12Nm in the order shown.

Note: Tighten the bolts and nuts in two steps and torque them in a diagonal pattern.
