Rear balancer

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Engine lubrication: repairs › Rear balancer
EngineRear balancer · page 1 of 3

REAR BALANCER

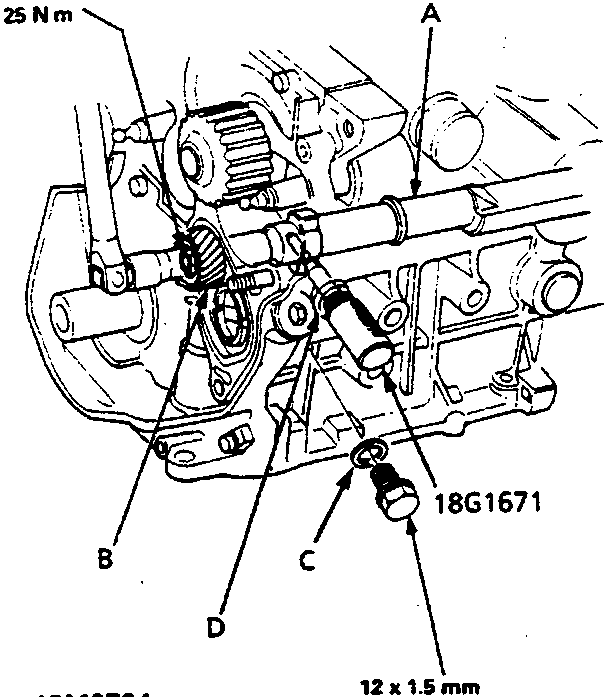

Diagram of the rear balancer assembly showing shaft, driven gear, washer, and maintenance hole with torque specifications.
  1. Rear Balancer Shaft
  2. Driven Gear
  3. Washer
  4. Maintenance Hole

FRONT BALANCER

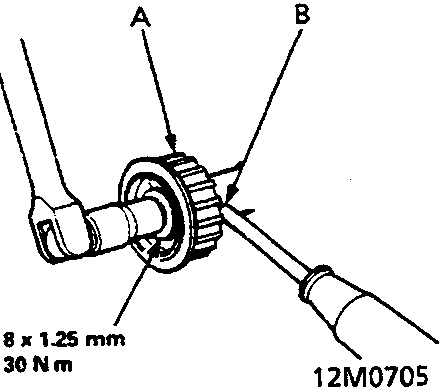

Diagram of the front balancer timing pulley and maintenance hole with a wrench and screwdriver tool applied.
  1. Timing Balancer Belt Driven Pulley
  2. Maintenance Hole
  1. Hold the balancer shaft with the special tool, then install the balancer driven gear and the timing balancer belt driven pulley.
  2. Use a new washer and install the bolt in the maintenance hole. Tighten the bolt to 30Nm.
