Removal/Inspection/Installation (page 3 of 3)

● Do not install the parts if 20 minutes or more have elapsed since applying liquid gasket. Instead, reapply liquid gasket after removing the old residue.

● After assembly, wait at least 30 minutes before filling the engine with oil.

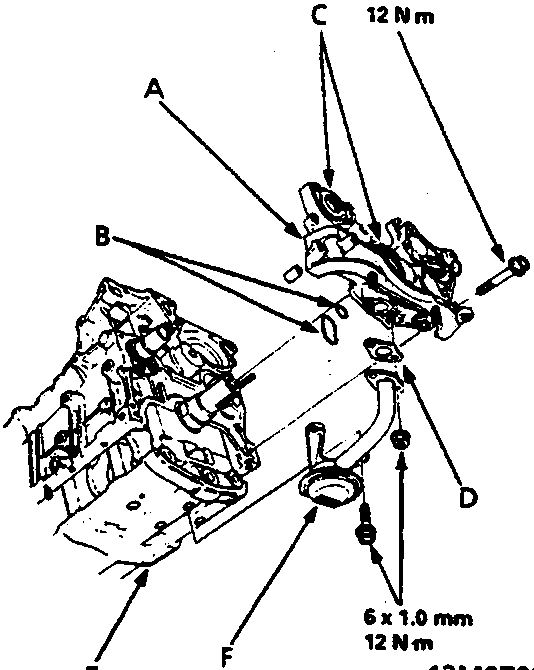

• A Oil Pump
• B O-rings
• C Seal Lips
• D Gasket
• E Baffle Plate
• F Oil Pick-up Strainer

● Apply grease to the lips of the crankshaft oil seal and the balancer shaft seal. Then install the oil pump inner rotor onto the crankshaft. When the pump is in place, clean any excess grease off the crankshaft and the balancer shaft, then check that the oil seal lips are not distorted.

20. Install the baffle plate.
21. Install the oil screen using a new gasket.

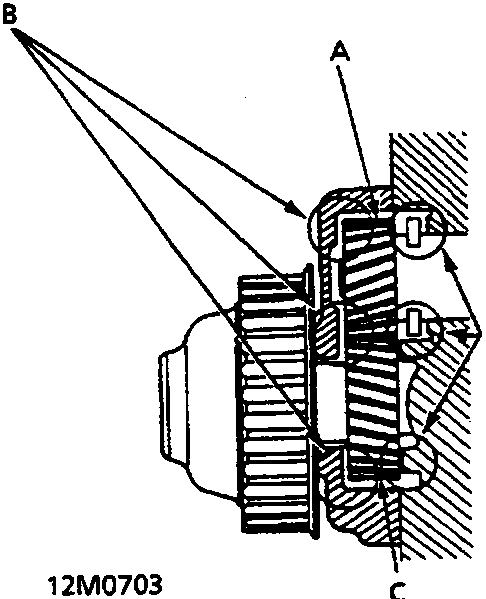

• A Balancer Driven Gear
• B Molybdenum Disulphide
• C Balancer Drive Gear

22. Apply molybdenum disulphide to the thrust surfaces of the balancer gears, as shown, before installing the balancer driven gear and the balancer gear case.
