Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition13 · Suspension
13 · Steering & suspension

Information (page 2 of 4)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Information
SuspensionInformation · page 2 of 4

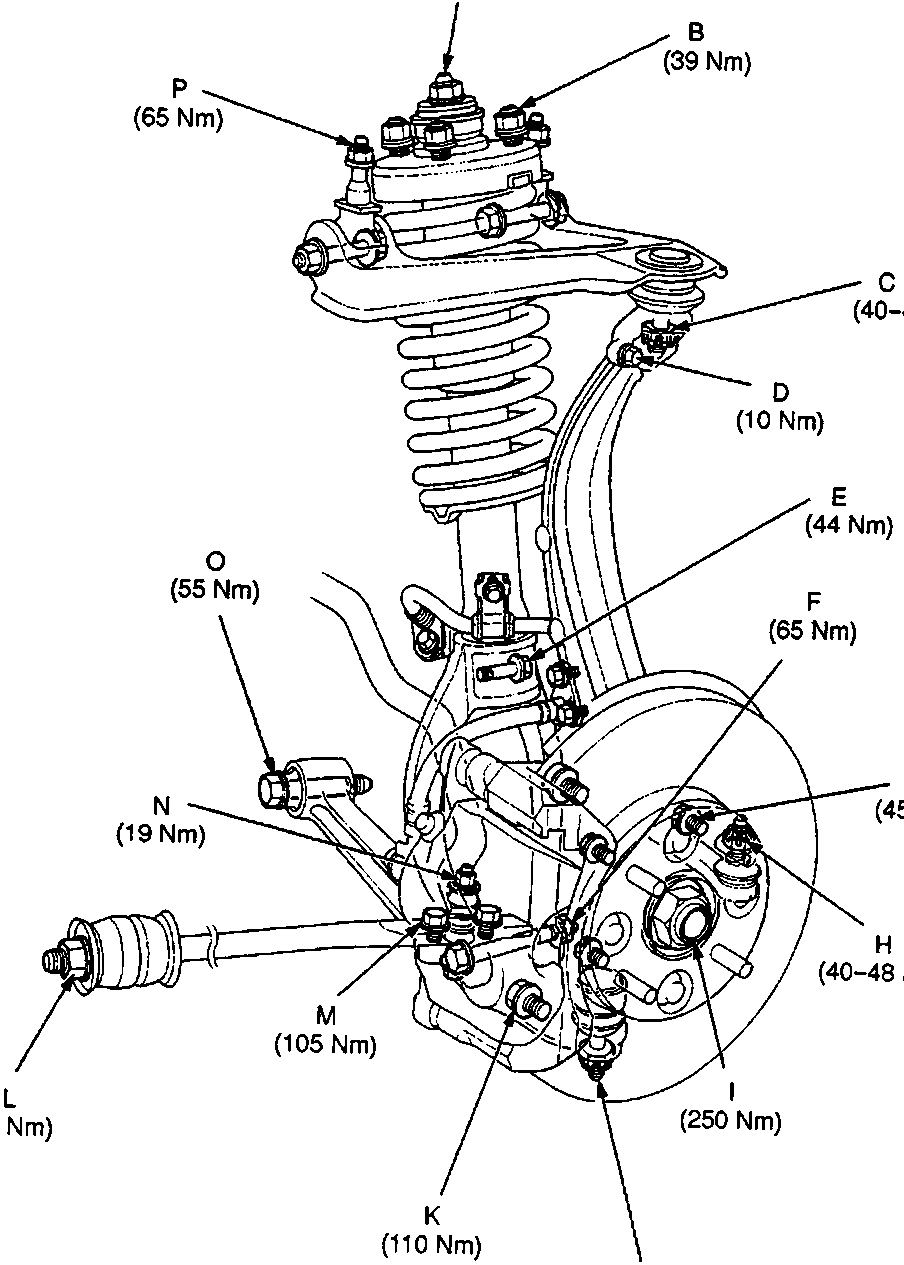

Information (page 2 of 4) – diagram from the Suspension chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

Diagram of front suspension assembly showing various fasteners and components with torque values labeled A through P.

60M 0063
