Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition13 · Suspension
13 · Steering & suspension

Torque specifications (page 2 of 2)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Information
SuspensionTorque specifications · page 2 of 2
No.Honda NumberRover NumberDescription
107GAE-SE0010118G 1516ASpring Compressor
207GAF-SD4010018G 1680Hub/Dis/Assembly Tool
307GAF-SD4020018G 1681Hub Assembly Guide Attachment
407GAF-SD4033018G 1536Ball Joint Remover
507GAF-SD4070018G 1679Hub/Dis/Assembly Base
607HAF-SF1011018G 1677/1Ball Joint Remover
707HAF-SF1012018G 1677/2Ball Joint Installer Base
807HAF-SF1013018G 1677/3Ball Joint Remover Base
907MAC-SL0010018G 1707Ball Joint Remover
1007MAC-SL0020018G 1584Ball Joint Remover
1107NAD-SS0010018G 1688Bushing Driver
1207749-001000018G 1354Driver
1307947-SB0010018G 1355Oil Seal Driver
1407965-SD9010018G 1605Support Base

The tools illustrated in this section are Honda tools, and Rover do not always have an equivalent. Where an equivalent Rover tool is available, it may not be visually identical to the Honda tool.

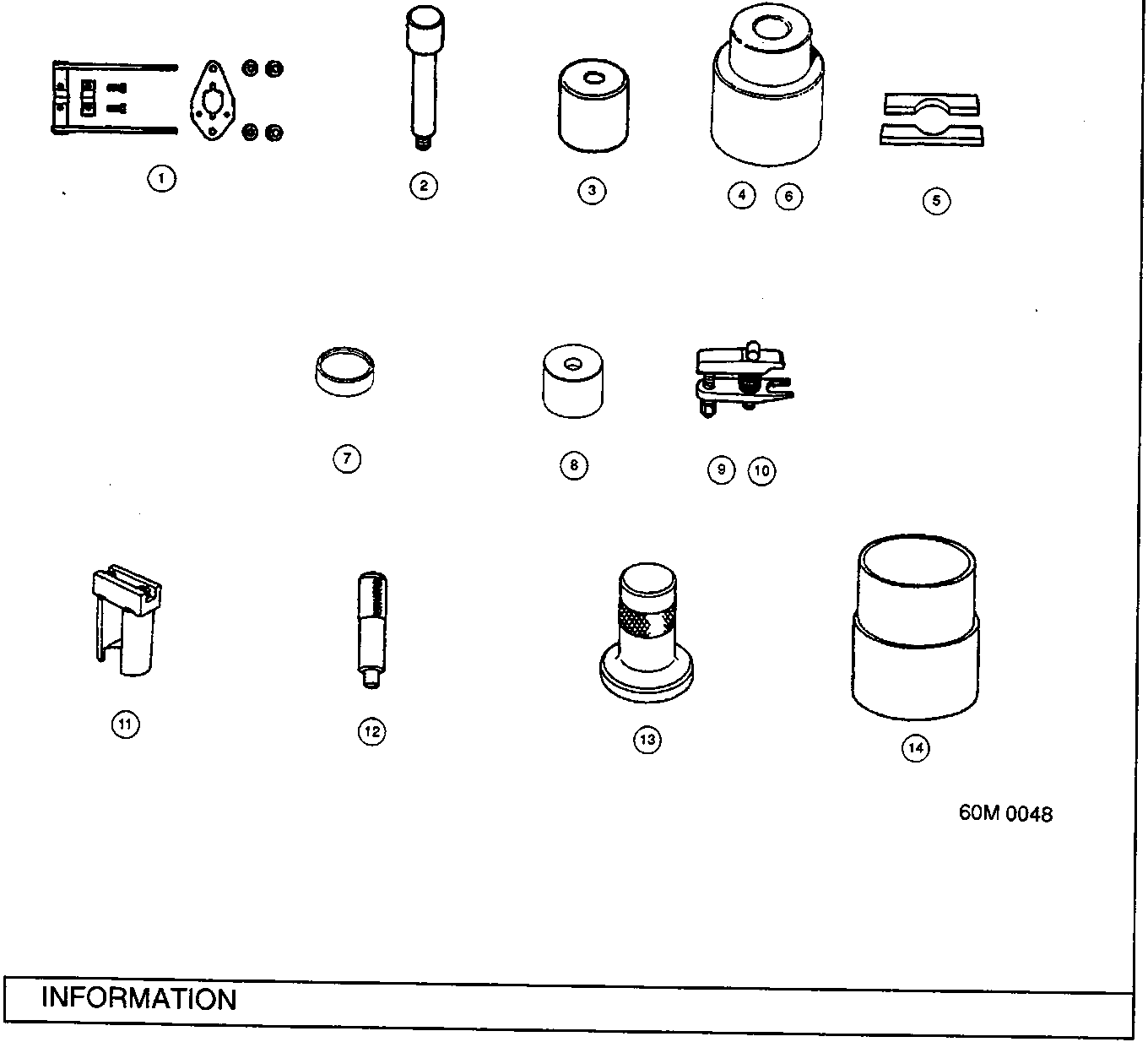

Illustration of fourteen special suspension tools numbered 1 through 14, including spring compressors, hub assembly tools, ball joint removers, installers, bushing drivers, oil seal drivers, and support bases.
  1. Spring Compressor set
  2. Hub/Dis/Assembly Tool
  3. Hub Assembly Guide Attachment
  4. Ball Joint Remover
  5. Hub/Dis/Assembly Base
  6. Ball Joint Remover
  7. Ball Joint Installer Base
  8. Ball Joint Remover Base
  9. Ball Joint Remover
  10. Ball Joint Remover
  11. Bushing Driver
  12. Driver
  13. Oil Seal Driver
  14. Support Base
