Workshop Manuals Factory service & repair Rover
Rover 620 Diesel Repair Manual Supplement (1995-1999)08 · Manual gearbox
08 · Transmission

Reverse lamp switch

Make
Rover
Model
600 620 Diesel Repair Manual Supplement
Year
1995–1999
Section
Repairs › Reverse lamp switch
Manual gearboxReverse lamp switch

REVERSE LAMP SWITCH

Service repair no - 37.27.01

Remove

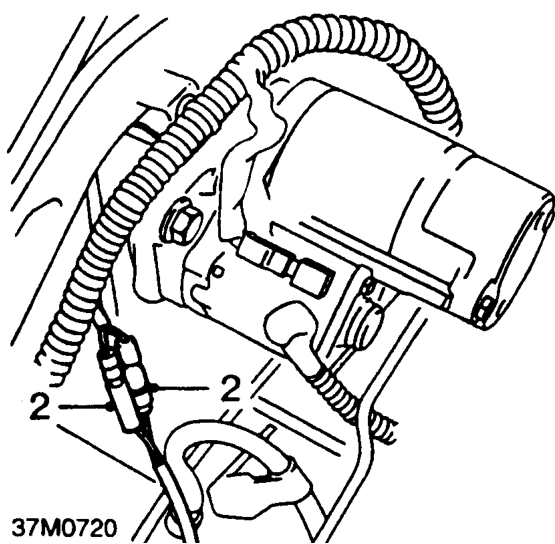

  1. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
Reverse lamp switch – Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
  1. Disconnect 2 reverse lamp switch leads from engine harness.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

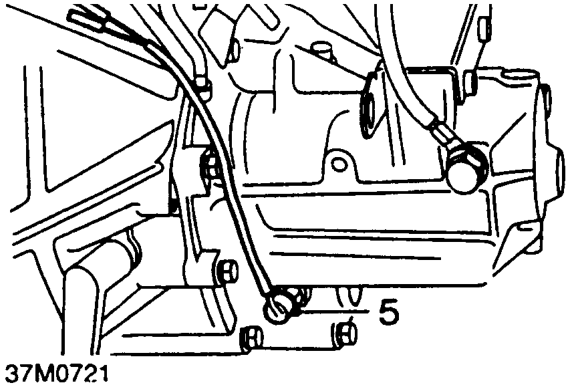

  1. Remove LH under belly panel. See BODY, Repairs.
Reverse lamp switch – Remove LH under belly panel. See BODY, Repairs.
  1. Remove reverse lamp switch and discard sealing washer.

Refit

  1. Clean reverse lamp switch and fit new sealing washer.
  2. Fit and tighten reverse lamp switch
  3. Fit LH under belly panel. See BODY, Repairs.
  4. Remove stand(s) and lower vehicle.
  5. Connect 2 reverse lamp switch leads to engine harness.
  6. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
