GEARBOX

Service repair no - 37.20.02

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Remove LH under belly panel. See BODY, Repairs.
  3. Remove under belly panel. See BODY, Repairs.
Gearbox – Remove under belly panel. See BODY, Repairs.

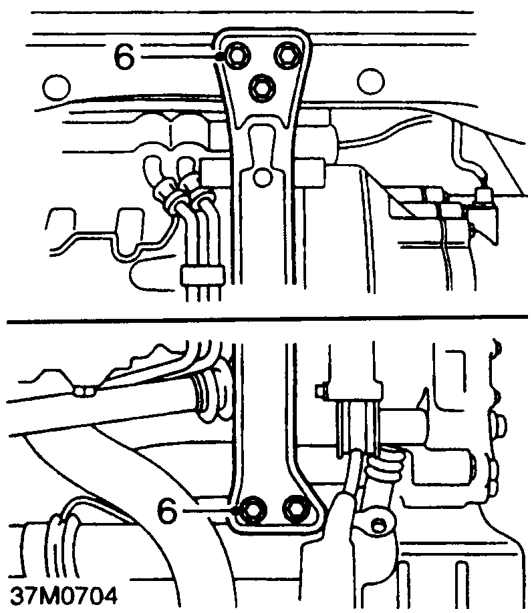

  1. Remove 5 bolts securing centre beam, remove centre beam.
Gearbox – Remove 5 bolts securing centre beam, remove centre beam.

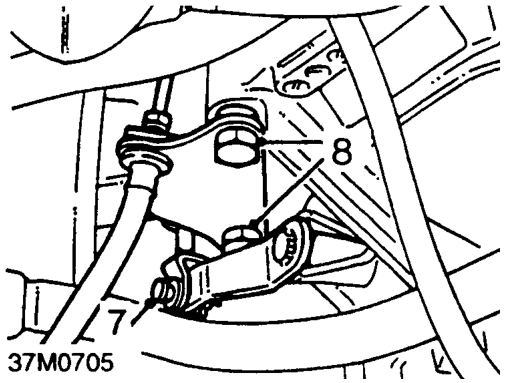

  1. Remove ’R’ clip and withdraw clevis pin from push rod and release lever, remove push rod and collect washer.
  2. Remove 2 bolts and nut securing slave cylinder bracket to gearbox and position aside.
Gearbox – Remove 2 bolts and nut securing slave cylinder bracket to gearbox and position aside.

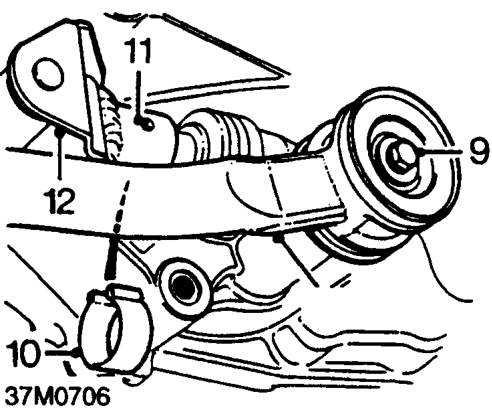

  1. Remove bolt and disconnect gear change steady bar; collect 2 washers.
  2. Remove clip retaining selector rod roll pin.
  3. Using a suitable punch, drive out selector rod roll pin.
  4. Tie selector rod and steady bar aside.
  5. Drain gearbox oil. See MAINTENANCE.
