Rover 620 Diesel Repair Manual Supplement (1995-1999)08 · Manual gearbox
08 · Transmission

Gearbox (page 3 of 7)

Make
Rover
Model
600 620 Diesel Repair Manual Supplement
Year
1995–1999
Section
Repairs
Manual gearboxGearbox · page 3 of 7
Diagram

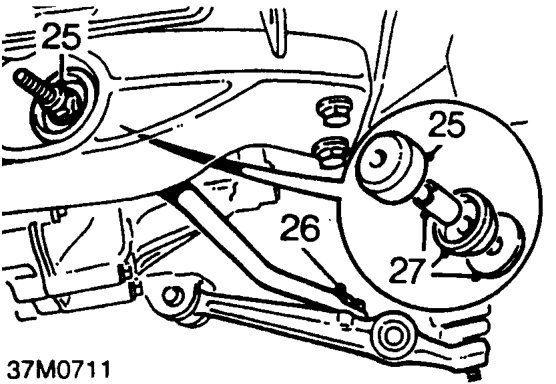

  1. Remove nut, special washer and rubber bushing from LH radius rod.
  2. Remove 2 bolts securing radius rod to lower arm.
  3. Remove radius rod and withdraw rubber bushing, spacer, special washer and adjusting shims.
Remove radius rod and withdraw rubber bushing, spacer, special washer and adjusting shims.

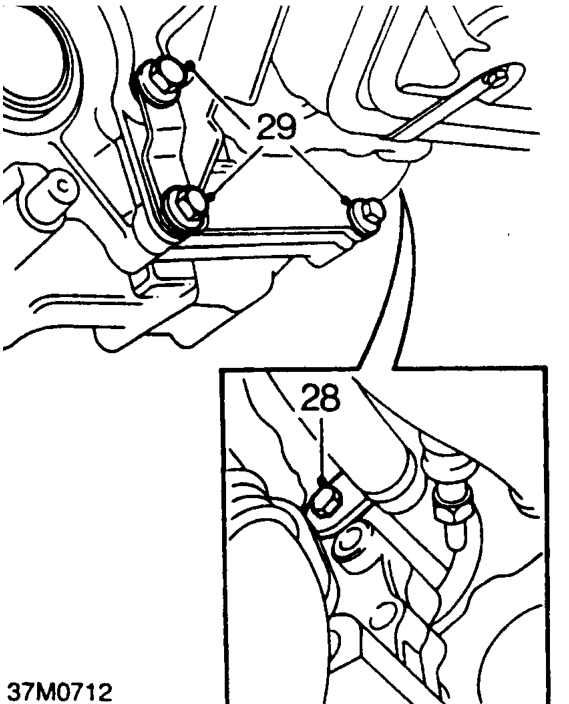

  1. Slacken bolt securing coolant rail bracket to gearbox mounting plate.
  2. Remove 3 lower gearbox retaining bolts.
  3. Remove starter motor. See ELECTRICAL, Repairs.
  4. Remove 3 bolts securing sound deadening pad to engine.
  5. Remove sound deadening pad.
Remove sound deadening pad.

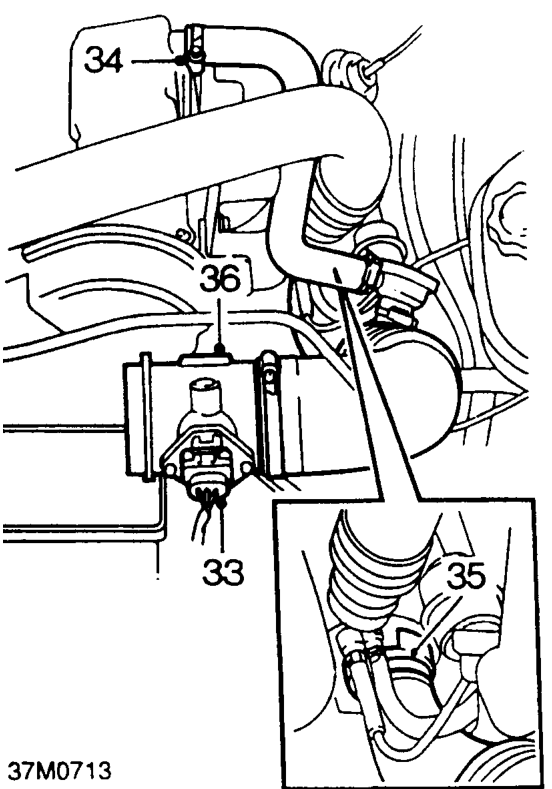

  1. Disconnect air flow meter multiplug.
  2. Slacken clip and disconnect breather valve hose from camshaft cover.
  3. Slacken clip and disconnect air intake hose from turbocharger.
  4. Remove air intake hose assembly.
