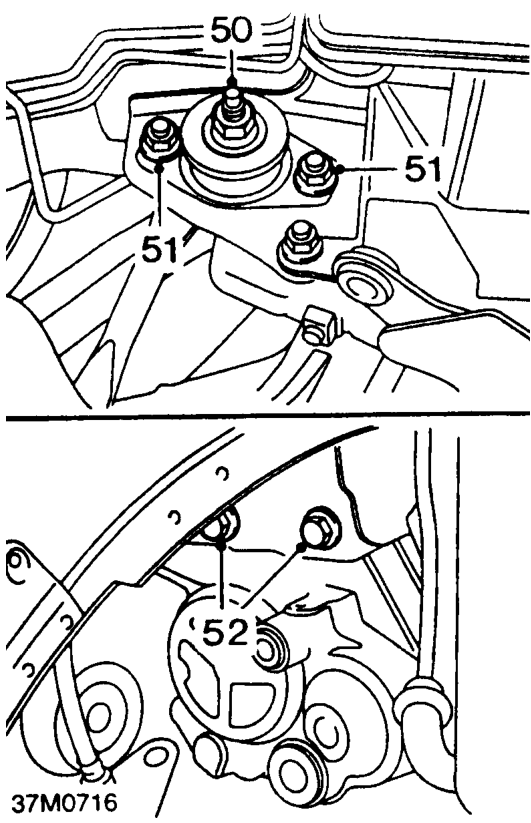

50. Remove nut securing LH engine mounting to gearbox bracket.
51. Remove 2 nuts securing LH engine mounting to bracket.
52. Remove 2 bolts securing mounting bracket to gearbox.
53. Remove LH engine mounting.
54. Lower gearbox slightly.

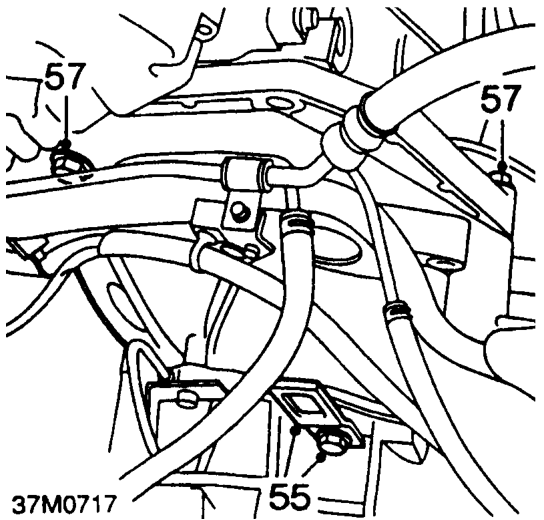

55. Remove bolt securing gear case to differential housing, position suitable lifting eye, fit and tighten bolt.
56. Attach hook of crane to lifting eye and support weight of gearbox.
57. Remove remaining 2 bolts securing top of gearbox to engine.
58. Release gearbox from locating dowels.
59. Using assistance, manoeuvre gearbox away from engine.
60. Lower gearbox, disconnect lifting hook and remove gearbox from beneath vehicle.
