Air cleaner

AIR CLEANER

Service repair no - 19.10.01

Remove

1. Remove key from starter switch and disconnect both battery leads, earth lead first.
2. Remove bolt and battery clamp; lift out battery.

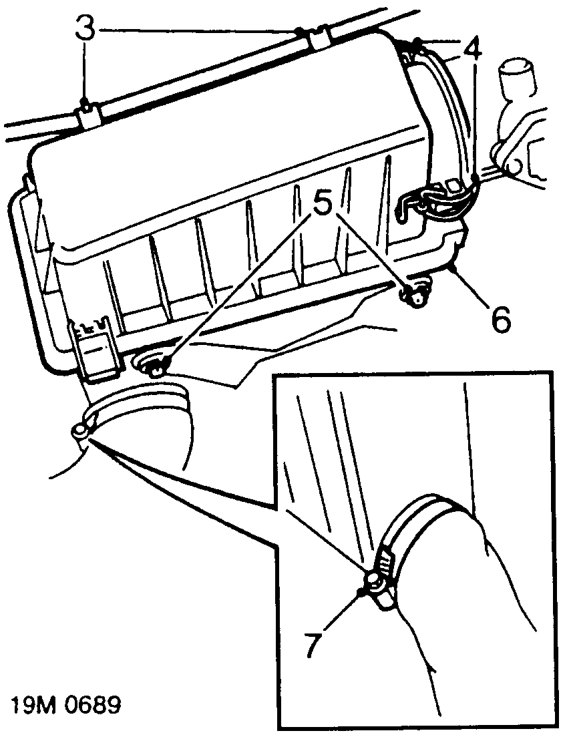

3. Release expansion tank return pipe from 2 clips on air cleaner.
4. Release 2 clips securing air flow meter housing to air cleaner.
5. Remove 2 bolts securing air cleaner to battery tray.
6. Release and remove air cleaner. Do not carry out further dismantling if component is removed for access only.
7. Release clip securing air intake hose to air cleaner.
8. Remove air intake hose from air cleaner.
9. Fit air intake hose to new air cleaner and tighten clip.

Refit

1. Fit air cleaner, ensuring spigot on mounting bracket locates into air cleaner.
2. Fit and tighten screws securing air cleaner to battery tray.
3. Connect air flow meter to air cleaner and secure clips.
4. Secure expansion tank return pipe to air cleaner clips.
5. Fit battery into tray, fit clamp and tighten bolt; connect both battery leads, earth lead last.
