Engine management systemCrankshaft sensor

CRANKSHAFT SENSOR

Service repair no - 18.30.12

Remove

  1. Disconnect battery earth lead.
Crankshaft sensor – Disconnect battery earth lead.
  1. Disconnect multiplug from air flow sensor.
  2. Release 2 clips securing air flow sensor housing to air filter.
  3. Slacken clip and disconnect one way valve from air intake pipe.
  4. Slacken clip and disconnect air intake hose from turbocharger.
  5. Remove air intake pipe from vehicle.

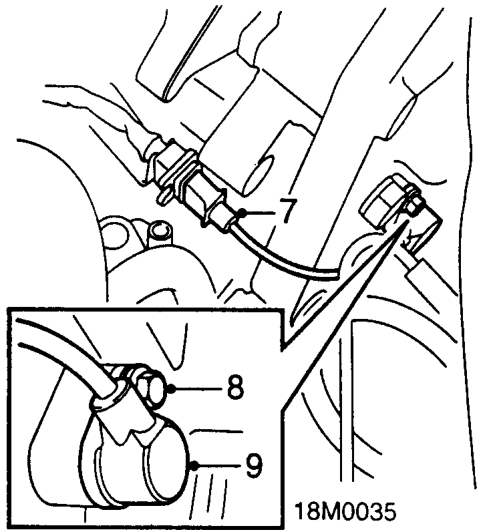

Crankshaft sensor – Remove air intake pipe from vehicle.
  1. Disconnect multiplug from crankshaft sensor.
  2. Remove bolt securing crankshaft sensor to gearbox mounting plate.
  3. Remove crankshaft sensor.

Refit

  1. Clean crankshaft sensor and mating face of gearbox mounting plate.
  2. Fit crankshaft sensor, fit bolt and tighten to 8 Nm.
  3. Connect multiplug to crankshaft sensor.
  4. Position air intake hose in engine compartment.
  5. Connect air intake hose to turbocharger and tighten clip.
  6. Connect one way valve to air intake hose and tighten clip.
  7. Connect air flow sensor housing to air filter and secure clips.
  8. Connect multiplug to air flow sensor.
  9. Connect battery earth lead.
