Engine management systemEGR solenoid valve

Refit

  1. Position ECM to mounting bracket, fit nuts and tighten to 9 Nm.
  2. Connect multiplug to ECM and engage metal clip.
  3. Fit and tighten ECM multiplug retaining screw.
  4. Manoeuvre ECM mounting bracket into position in passenger’s footwell.
  5. Secure cooling fan relay module to clip on mounting bracket.
  6. Fit ECM mounting bracket to studs on bulkhead, fit nuts and tighten to 9 Nm.
  7. Position passenger’s footwell carpet and fit to base of ’A’ post, bulkhead and rear of centre console.
  8. Fit trim fastener securing carpet to centre console.
  9. Connect both battery leads, earth lead last.

EGR SOLENOID VALVE

Service repair no - 17.45.04

Remove

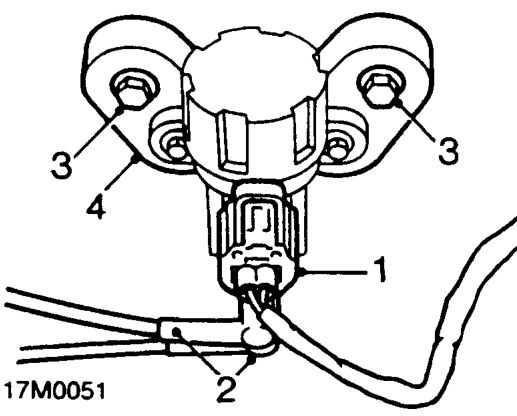

Egr solenoid valve – Service repair no - 17.45.04
  1. Disconnect multiplug from EGR solenoid valve.
  2. Disconnect 2 vacuum hoses from solenoid valve.
  3. Remove 2 nuts and bolts securing solenoid mounting rubber to mounting bracket.
  4. Remove solenoid valve and mounting rubber.

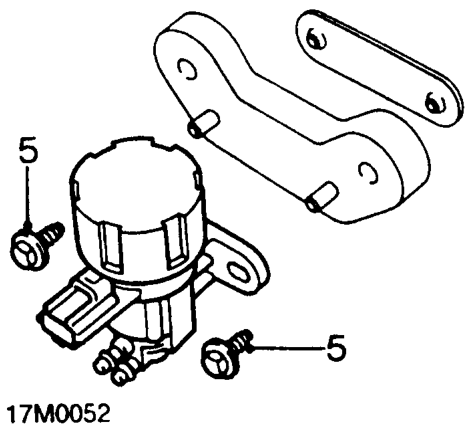

Egr solenoid valve – Remove solenoid valve and mounting rubber.
  1. Remove 2 screws securing solenoid valve to mounting rubber.
  2. Remove EGR solenoid valve.
