Manifold absolute pressure sensor

Refit

1. Lubricate and fit new ’O’ ring seal to fuel shut-off solenoid.
2. Clean fuel shut-off solenoid plunger.
3. Fit spring and plunger to fuel shut-off solenoid.
4. Fit fuel shut-off solenoid to injection pump and tighten to 20 Nm.
5. Remove absorbent cloth.
6. Connect intercooler top hose to inlet manifold and tighten clip.
7. Position sound deadening pad and secure with bolts.
8. Connect battery earth lead.

MANIFOLD ABSOLUTE PRESSURE SENSOR

Service repair no - 18.30.56

Remove

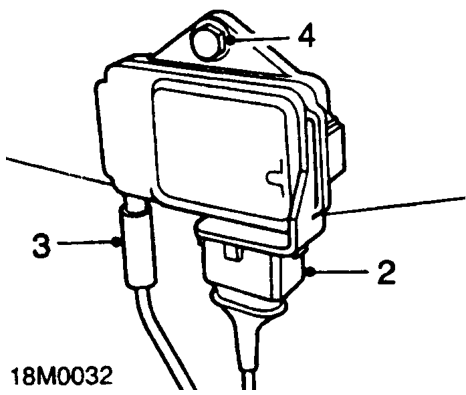

1. Disconnect battery earth lead.

2. Disconnect multiplug from sensor.
3. Disconnect boost pressure sensing pipe from sensor.
4. Remove nut and bolt securing sensor to mounting bracket.
5. Remove sensor.

Refit

1. Align sensor to mounting bracket, fit nut and bolt and tighten to 9 Nm.
2. Connect boost pressure sensing pipe to sensor.
3. Connect multiplug to sensor.
4. Connect battery earth lead.
