EGR valve

Refit

1. Align EGR solenoid valve to mounting rubber, fit and tighten bolts
2. Position solenoid valve to mounting bracket, fit and tighten nuts and bolts.
3. Connect vacuum pipes to solenoid valve.
4. Connect multiplug to EGR solenoid valve.

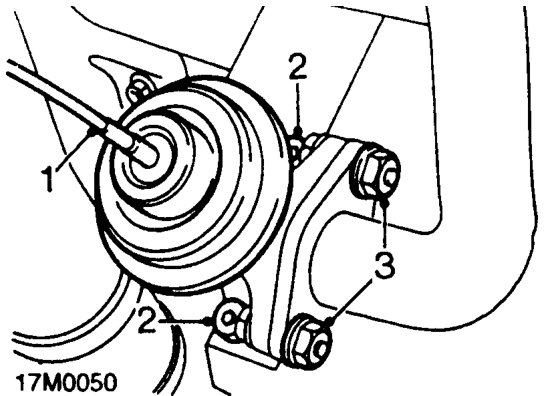

EGR VALVE

Service repair no - 17.45.01

Remove

1. Disconnect vacuum pipe from EGR valve.
2. Remove 2 Allen screws securing EGR valve to exhaust manifold.
3. Remove 2 nuts and bolts securing recirculation pipe to EGR valve.
4. Remove EGR valve.
5. Remove and discard 2 gaskets.

Refit

1. Clean mating faces of EGR valve, exhaust manifold and recirculation pipe.
2. Fit new gaskets to EGR valve.
3. Align EGR valve to exhaust manifold, fit allen screws and tighten to 25 Nm.
4. Align recirculation pipe to EGR valve, fit nuts and bolts and tighten to 25 Nm.
5. Connect vacuum pipe from EGR solenoid to EGR valve.
