INTERCOOLER - AIR CONDITIONING MODELS

Service repair no - 19.42.15/20

Remove

  1. Remove air cleaner assembly. See this section.
Intercooler - air conditioning models – Remove air cleaner assembly. See this section.
  1. Remove 3 bolts securing sound deadening pad to engine.
  2. Remove sound deadening pad.
  3. Remove under belly panel, See BODY, Repairs.
  4. Drain cooling system. See MAINTENANCE.

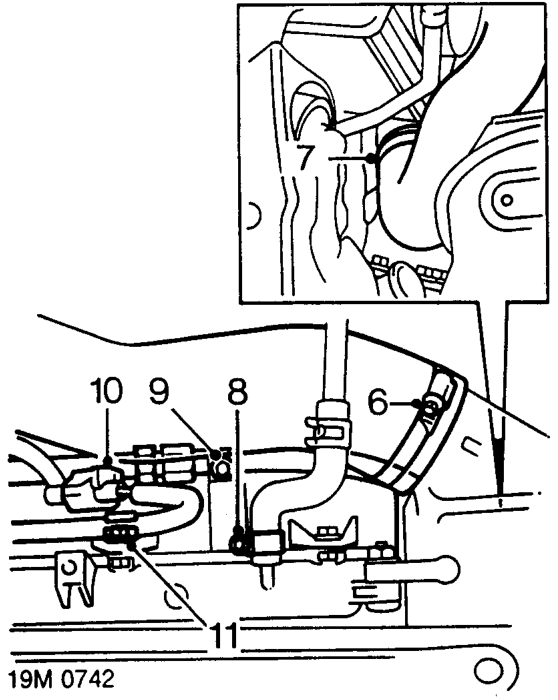

Intercooler - air conditioning models – Drain cooling system. See MAINTENANCE.
  1. Slacken clip and disconnect top hose from intercooler.
  2. Slacken clip and disconnect bottom hose from intercooler.
  3. Slacken clip and disconnect expansion tank return pipe from radiator.
  4. Remove bolt securing air conditioning pipe to LH cooling fan cowl.
  5. Disconnect LH cooling fan motor multiplug.
  6. Release harness from clip on LH cooling fan cowl.
