Intercooler - non air conditioning models (page 2 of 2)

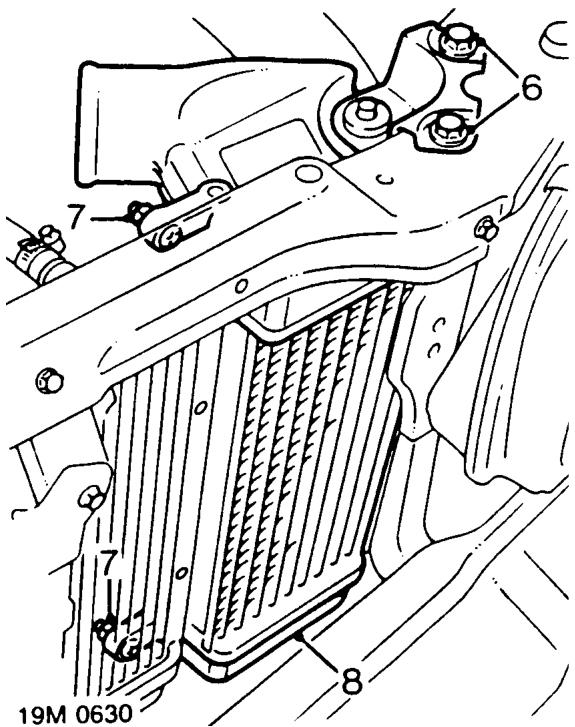

6. Remove 2 bolts securing intercooler support bracket to bonnet lock plateform.
7. Remove 2 Tx40 Torx bolts and nuts securing intercooler to radiator.
8. Release and remove intercooler.
9. Retain rubber mounting.

Refit

1. Ensure rubber mounting is fitted correctly.
2. Fit and tighten nuts and Torx bolts securing intercooler and radiator.
3. Fit intercooler into position.
4. Fit intercooler support bracket to bonnet lock plateform, fit bolts and tighten bolts to 9 Nm.
5. Fit hoses to top and bottom of intercooler and secure with clips.
6. Fit under belly panel. See BODY, Repairs.
7. Remove stand(s) and lower vehicle.
8. Connect battery earth lead.
