TURBOCHARGER

Service repair no - 19.42.01

Remove

  1. Disconnect battery earth lead.
Turbocharger – Disconnect battery earth lead.

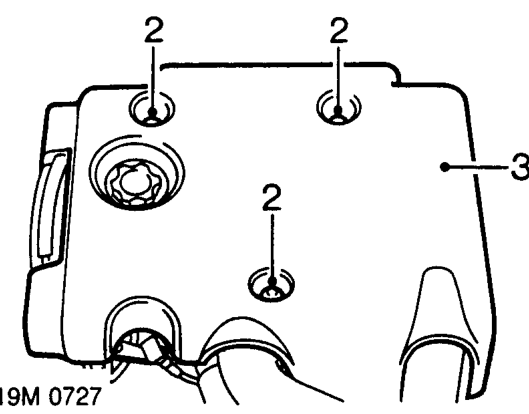

  1. Remove 3 bolts securing sound deadening pad to engine.
  2. Remove sound deadening pad.
Turbocharger – Remove sound deadening pad.

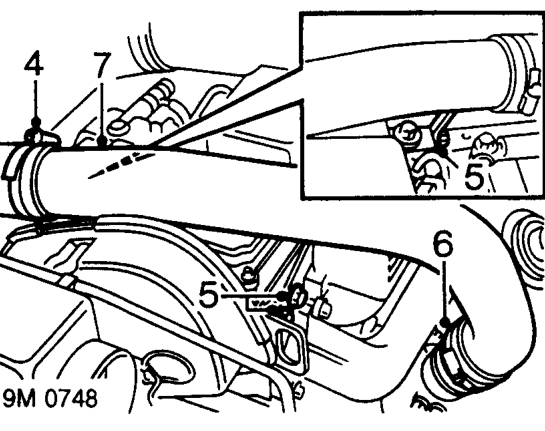

  1. Slacken clip and disconnect intercooler hose from turbocharger pipe.
  2. Remove 3 bolts securing turbocharger pipe to cylinder head, collect engine lifting bracket.
  3. Slacken clip and disconnect pipe from turbocharger.
  4. Remove turbocharger pipe.
Turbocharger – Remove turbocharger pipe.

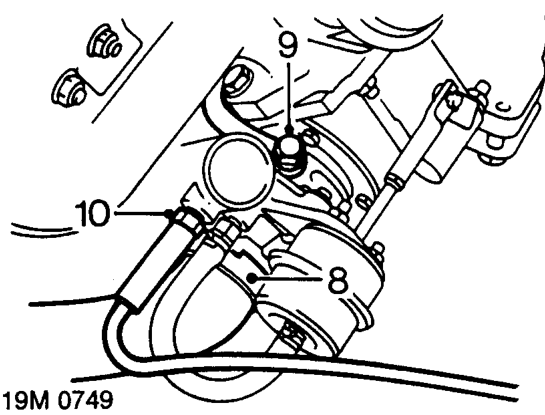

  1. Slacken clip and disconnect air intake hose from turbocharger.
  2. Remove banjo bolt securing oil feed pipe to turbocharger, collect 2 sealing washers and discard.
  3. Disconnect boost pressure sensing pipe from turbocharger.
  4. Remove RH under belly panel. See BODY, Repairs.
