Turbocharger (page 2 of 2)

Make

Rover

Model

600 620 Diesel Repair Manual Supplement

Year

1995–1999

Section

Repairs

Engine management systemTurbocharger · page 2 of 2

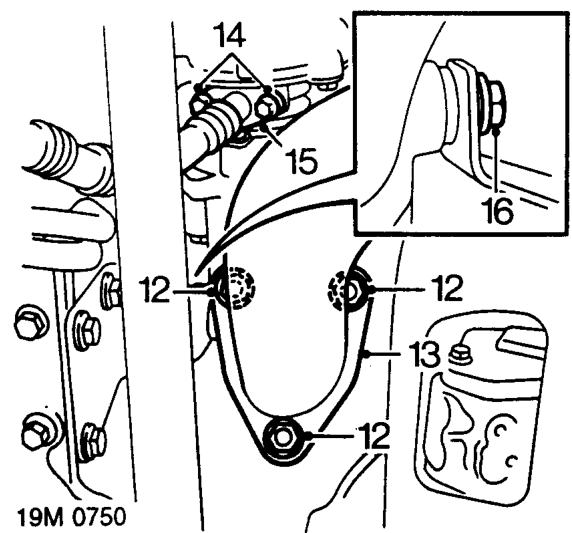

12. Remove 3 nuts securing exhaust front pipe to exhaust manifold.
13. Release exhaust front pipe from exhaust manifold, remove and discard manifold flange gasket.
14. Remove 2 bolts securing oil drain pipe flange to turbocharger.
15. Remove and discard gasket.

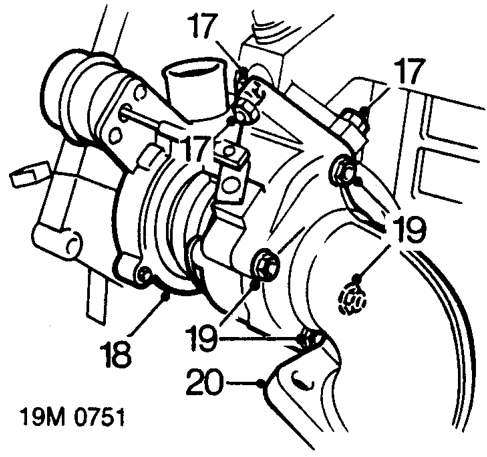

16. Remove bolt securing exhaust manifold to mounting bracket.

17. Remove 3 nuts securing turbocharger to exhaust manifold.
18. Release and remove turbocarger. Do not carry out further dismantling if component is removed for access only.
19. Remove 4 nuts securing exhaust elbow to turbocharger.
20. Remove exhaust elbow.
21. Clean mating faces of turbocharger and exhaust elbow.
22. Fit exhaust manifold elbow to turbocharger, fit nuts and tighten to 25 Nm.
