COOLANT TEMPERATURE SENSOR

Service repair no - 18.30.59

Remove

  1. Disconnect battery earth lead.
Coolant temperature sensor – Disconnect battery earth lead.

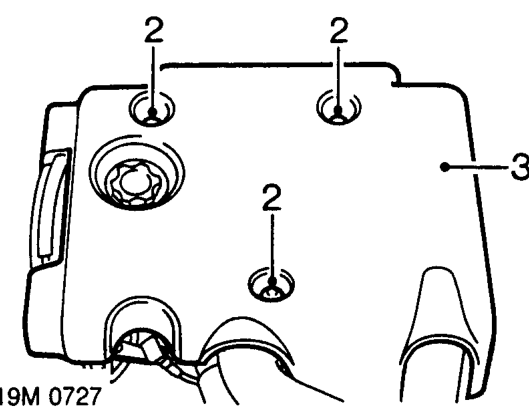

  1. Remove 2 bolts securing sound deadening pad to engine.
  2. Remove sound deadening pad.

Models with air conditioning

Models with air conditioning – Remove sound deadening pad.

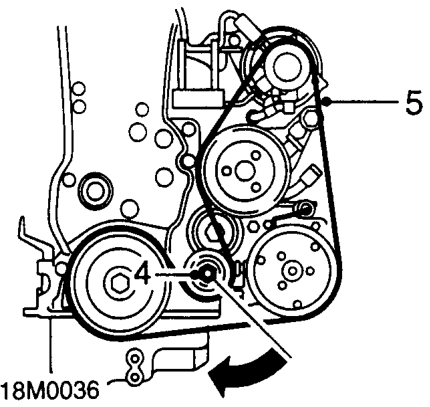

  1. Using a 15 mm ring spanner on drive belt tensioner pulley bolt, rotate pully fully clockwise and hold.
  2. Using assistance, release drive belt from alternator pulley.
Models with air conditioning – Using assistance, release drive belt from alternator pulley.

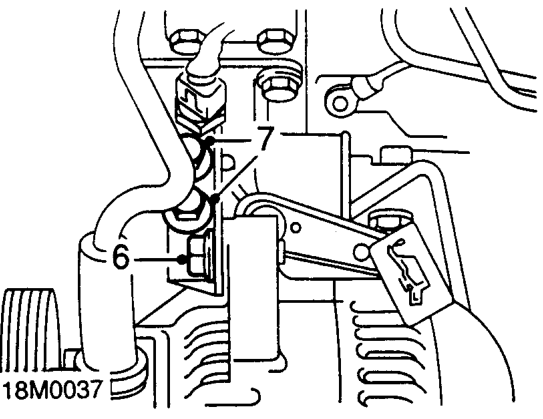

  1. Remove bolt securing alternator to top mounting bracket.
  2. Remove 2 bolts securing alternator top mounting bracket to coolant outlet elbow and remove bracket.

All models

All models – Remove 2 bolts securing alternator top mounting bracket to coolant outlet elbow and remove

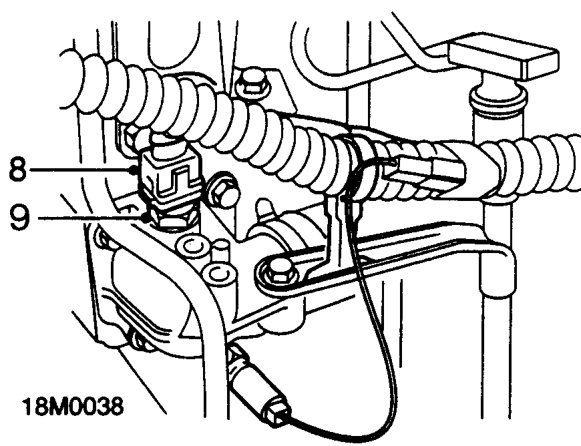

  1. Disconnect multiplug from coolant temperature sensor.
  2. Remove coolant temperature sensor.
